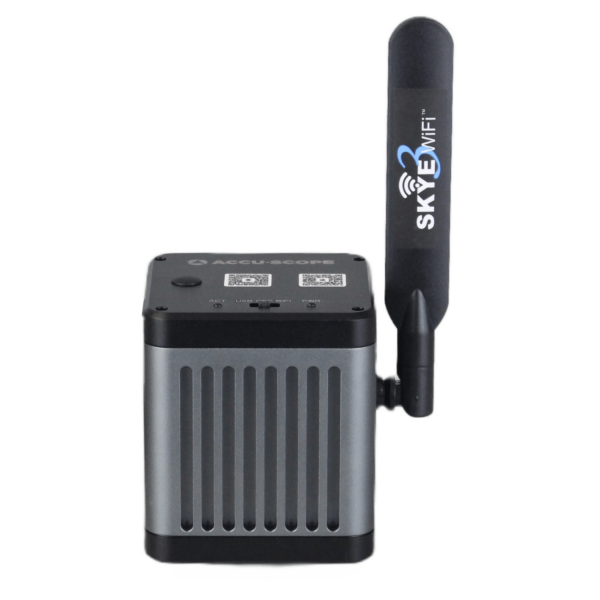

SKYE WiFi 3

SKYE WiFi 3

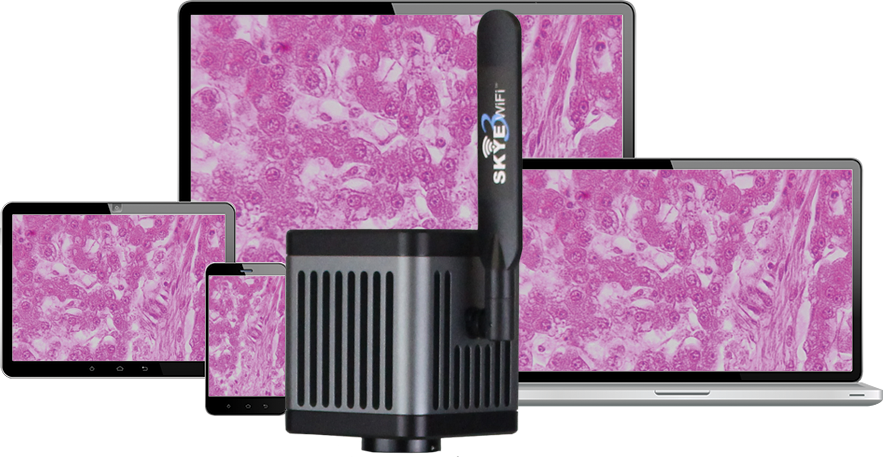

The SKYE WiFi 3 Microscopy Camera delivers fantastic 12MP color images and video directly to your mobile device via WiFi signals. Connect multiple mobile devices to the same camera for simultaneous observation via the SKYE View 3 mobile app. SKYE WiFi 3 cameras offer 3 additional connection modes: USB to PC, Ethernet/LAN to PC, and continuous HDMI to HD monitor.  This 3rd generation SKYE WiFi 3 cameras set the standard for convenience, collaboration and connectivity like never before!



KEY FEATURES

More Ways to Connect and View!

The SKYE WiFi 3 camera’s unique architecture gives you multiple ways to connect to the camera and view/capture images and video.

  1. Connect to a mobile device (Android or iOS) to view images with our SKYE View 3 app.  Up to 13 mobile devices can connect to the same camera simultaneously.  Just scan the camera’s QR code with your mobile device’s camera and connect to the camera instantly.
  2.  Connect directly to a monitor and use a mobile device with SKYE View 3 to control image conditions.
  3. Connect to a PC via USB 3.0 and view images with our powerful SKYE View 3 software.

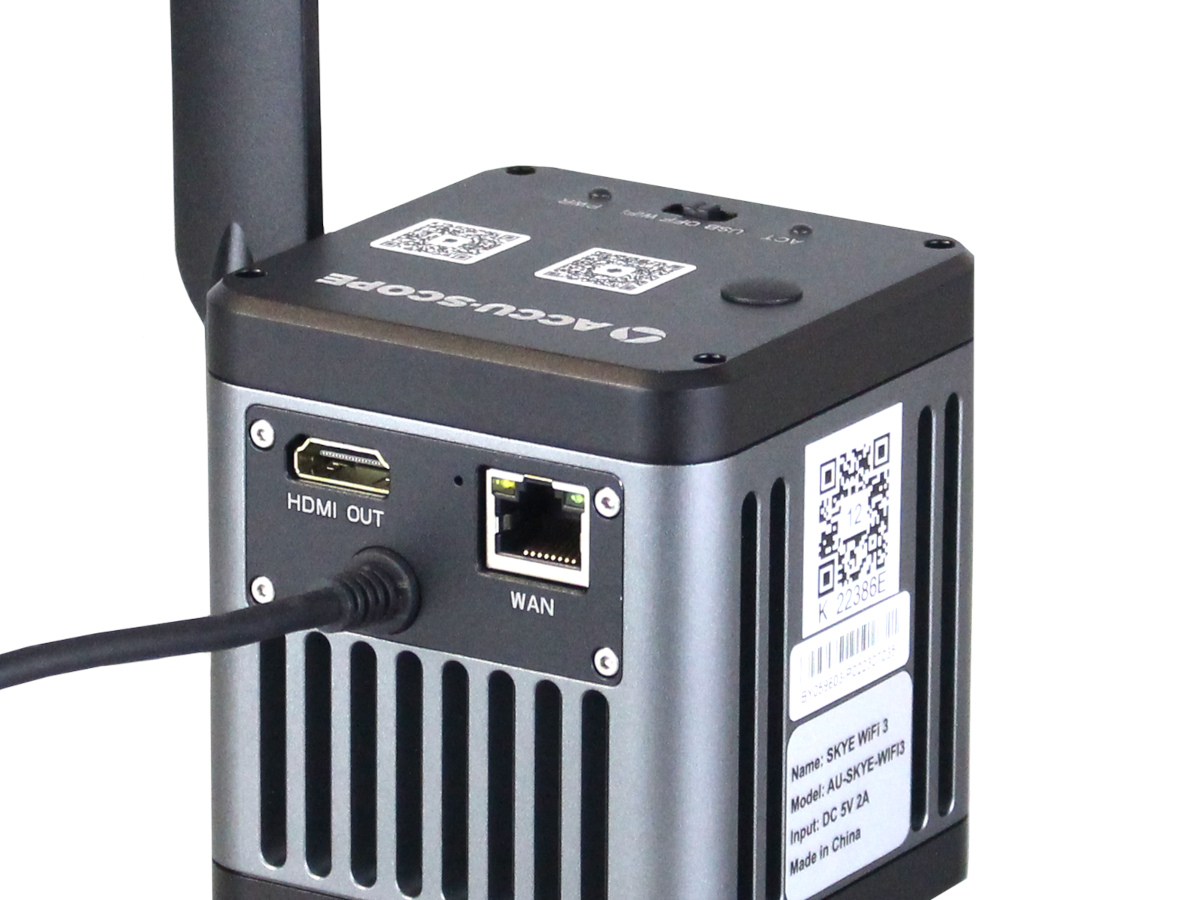

  4. Connect to the LAN via Ethernet and view images on a LAN-connected PC using SKYE View software.

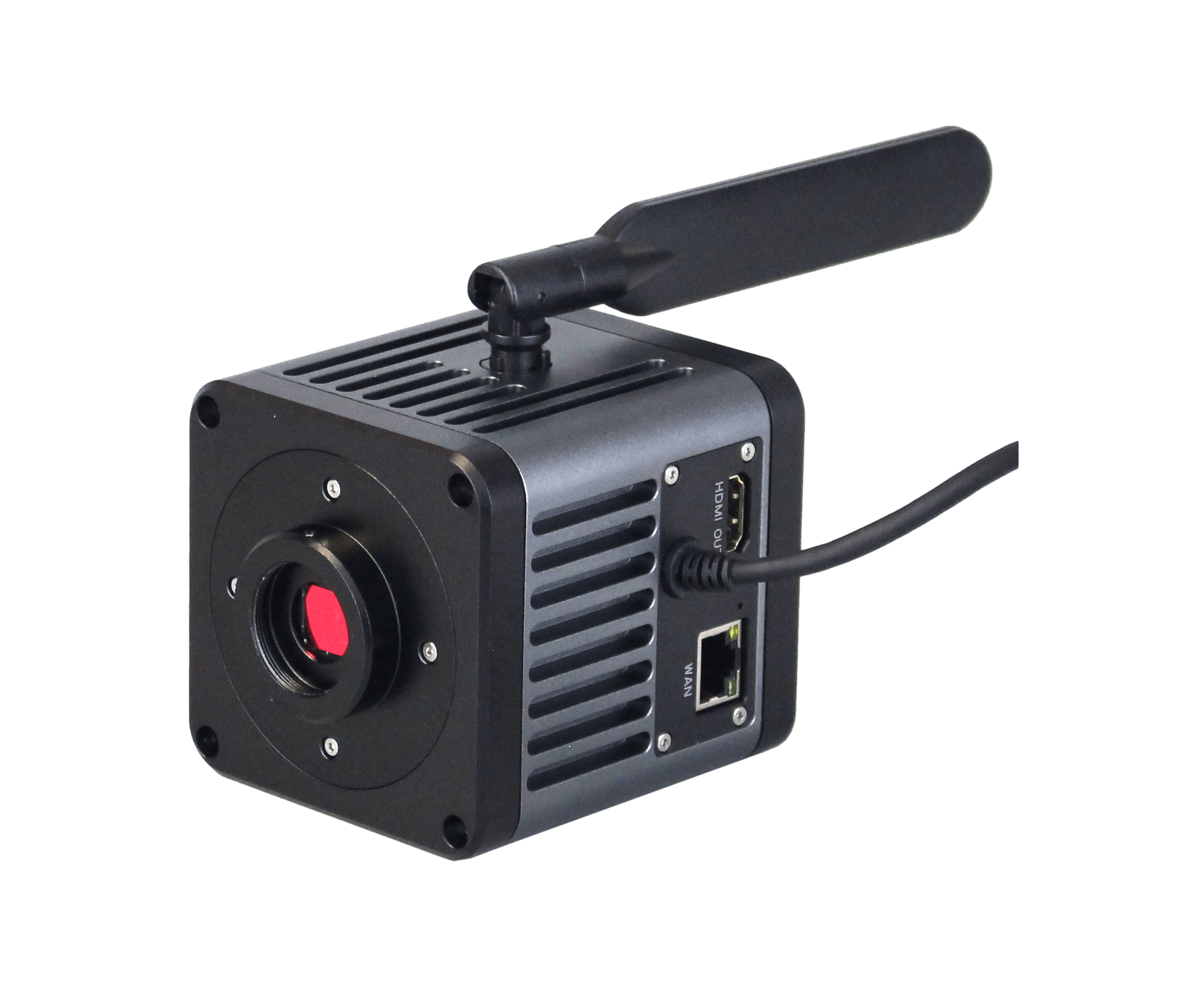

SONY Camera Sensor

A 12MP Sony STARVISâ„¢ IMX412 color CMOS sensor is the foundation of the SKYE WiFi 3 camera.  With back illumination for increased sensitivity and a massive 4000×3000 pixel array, the SKYE WiFi 3 can capture still images (full resolution) or stream live true 4K UHD video at 30fps.

NDAA Compliant for Your Security

The SKYE WiFi 3 is fully compliant with the McCain National Defense Authorization Act 889 (NDAA 889)!  It does not use any electronics or components from prohibited Chinese suppliers.  You can learn more at the Federal Register.

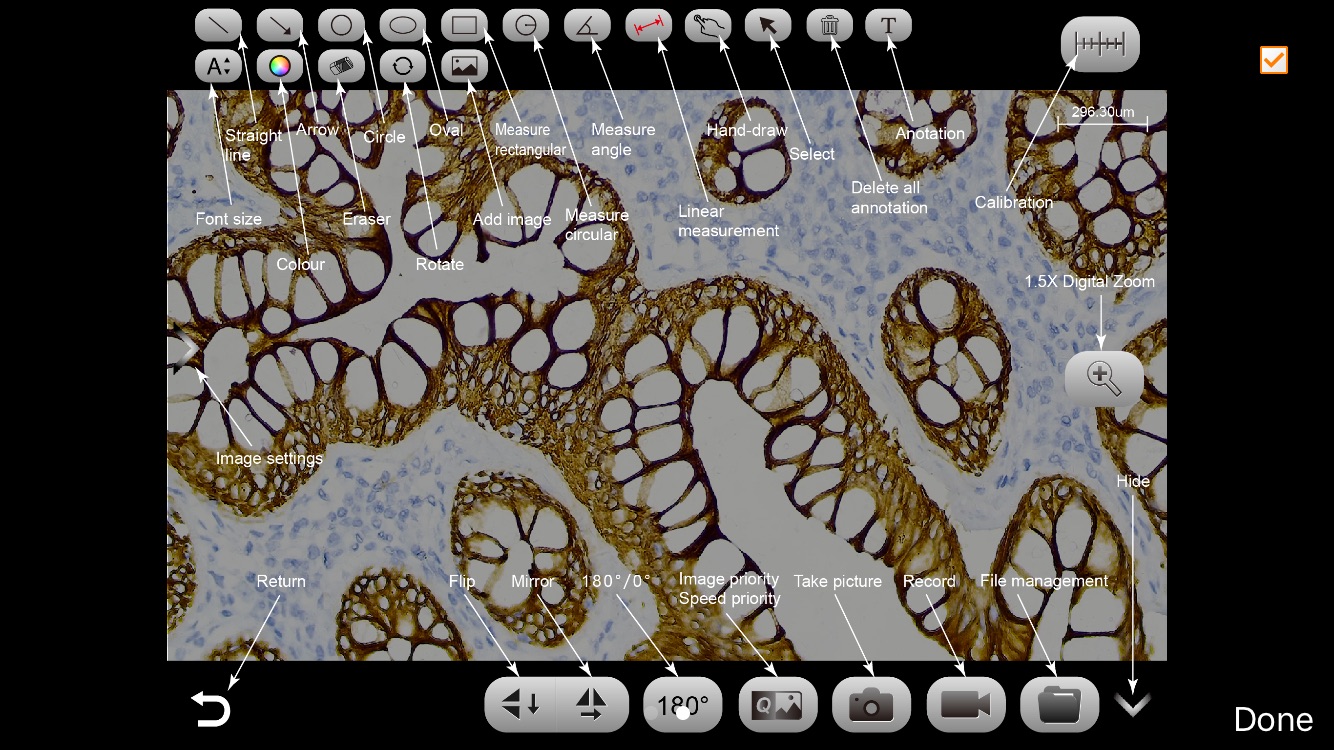

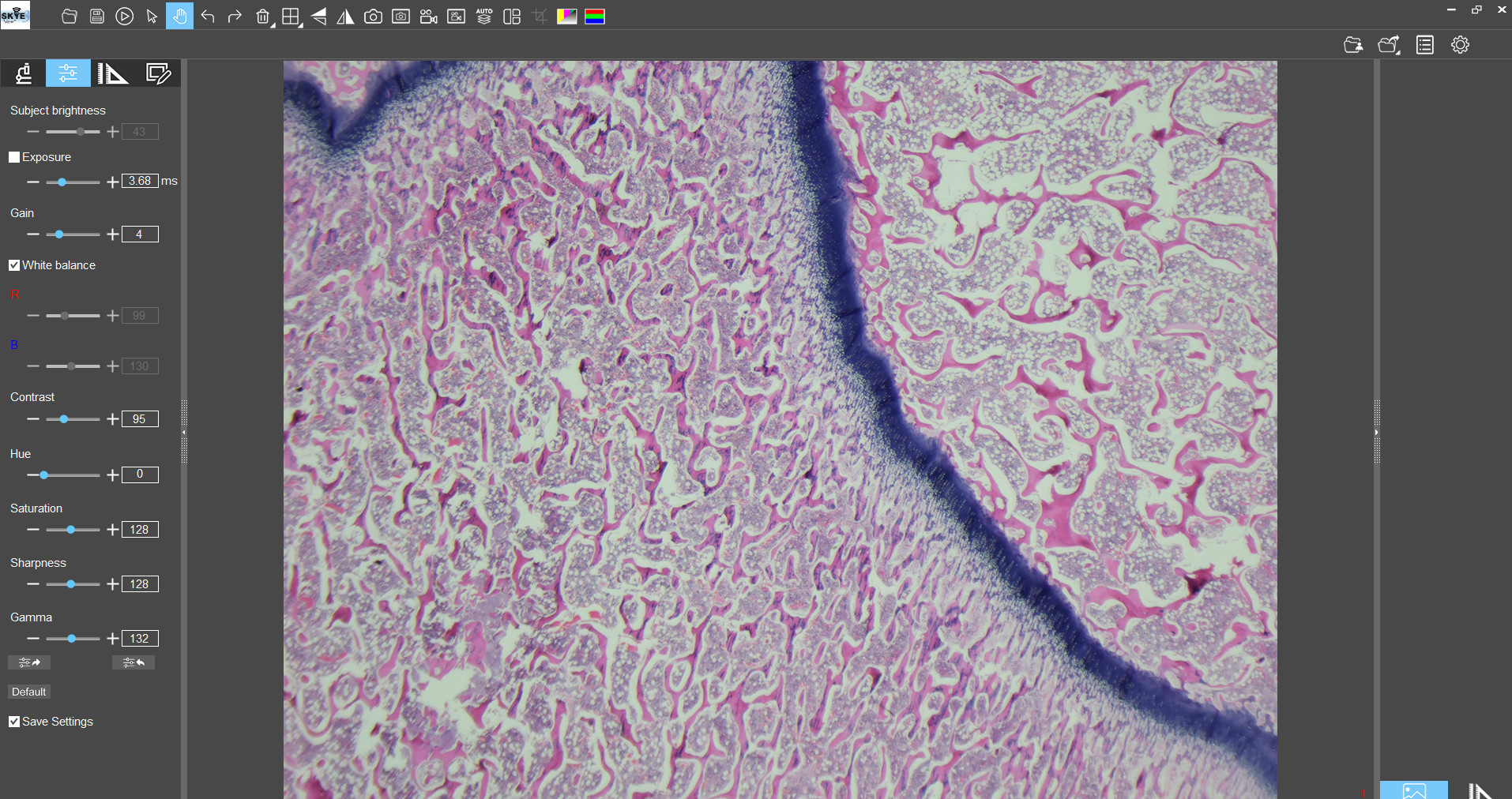

Powerful SKYE View 3 Software & Mobile Apps

SKYE View 3 software is available for FREE and  is a ready-to-use Windows PC software that requires no additional driver installation. It is designed to work with the SKYE WiFi 3 12MP color camera and supports USB connections, WiFi and network connections, thus providing users with more versatile and convenient ways to access and transfer images.  Key PC software features include:

  • Logical user interface with workflow-based menus and tools
  • Capture still images, record live and time lapse video
  • Simple calibration and measurements
  • Advanced control of exposure, gain, color balance, etc.
  • Image processing tool

Key mobile app features include:

  • Scan camera QR code to connect instantly to camera WiFi network
  • The most essential functions including calibration and measurements, annotations, image/video capture, and gallery view
  • Automatic Depth-of-Field Fusion (EDF)
  • Built-in user instructions for reference

SKYE View 3 is available for Windows, Android and iOS.  Learn more about SKYE View 3 HERE.

Download the SKYE View mobile apps below:


Specifications
MODEL
AU-SKYE-WIFI3
SENSOR
Sony IMX412 color CMOS
SENSOR SIZE
“1/2.3” “. “2.3” C-mount adapter recommended
RESOLUTION
4000 (H) x 3000 (V); 8MP
PIXEL SIZE
1.55µm x 1.55µm
FRAME RATE
WiFi: 30fps / HDMI: 30fps / USB:3.0: 30fps / Ethernet: 30fps
SHUTTER MODE
Rolling
IMAGE TRANSMISSION
WiFi, HDMI, USB 3.0, Ethernet
IMAGE CAPTURE
12MP to mobile device or PC
VIDEO CAPTURE
HDMI: 2160p, 30fps viewing / 2160p, 30fps video recording to mobile device or PC
EXPOSURE TIME
10μs – 33ms
AUTOMATIC SETTINGS
Exposure, White Balance
MANUAL SETTINGS
Exposure, Gain, Brightness, Noise Reduction, White Balance, Gamma, Saturation
SPECTRAL RESPONSE
380nm – 650nm
ADC DEPTH
12bit
OPERATING CONDITIONS
0-40°C
DATA INTERFACE
WiFi 5GHz IEEEE802.11ac; USB 2.0; Ethernet; HDMI (video only)
POWER SUPPLY
DC 5V/2A
CAMERA SIZE / WEIGHT
78 x 78 x 191mm / 800g
PC Imaging Software
SKYE View 3 Imaging Software (for PC/Windows only)
Advanced Camera Controls: live and still image measurement and annotation, real-time flatfield, ROI and mask, histogram, smoothing; fluorescence image settings; fluorescence multi-color channel mixer merge
Image Types: JPG, BMP, PNG, TIF

SKYE View 3 Mobile App (Android and iOS)
Camera properties including type of stain, calibration/measurement, image/video capture, annotation, depth of field fusion
Image Types: JPG
System Requirements (for PC Imaging Software)
Recommended minimum PC configuration:
Windows 10, 64-bit and above
(Windows PC only; Mac OS not supported)
I5 (8th gen.) processor
32GB hard disk space, or more
16GB RAM, or more
Graphics card with core display
Wireless: Internal wireless network card
IEEE802.11ac
USB: USB 2.0 or higher
Internet connection (software download)
Network card (for Ethernet operation)
10/100/1000Mb auto adaptive
System Requirements for Mobile Devices
Android system 7.0 or higher
CPU dual-core 1.7Ghz or higher
3GB RAM or more
32GB storage or more
Supports wireless protocol 5GHz WiFi
IEEE802.11ac

iOS 11.0 or higher
CPU dual-core 1.8Ghz or above
2GB RAM or more
32GB storage space or more
Supports wireless protocol 5GHz WiFi
IEEE802.11ac

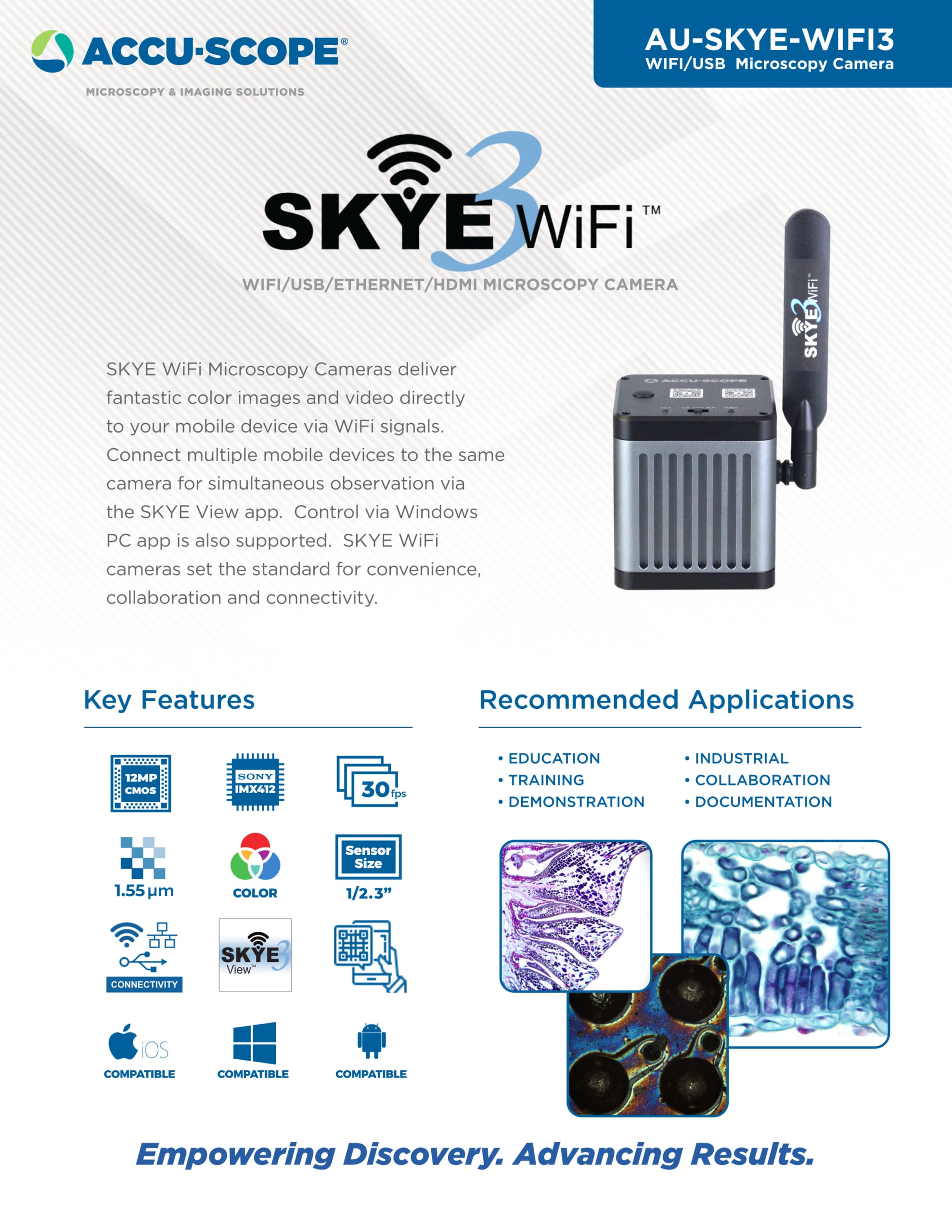

Brochures (1)

Manuals (3)

SKYE WiFi 3 Camera Instruction Manual (CAT# AU-SKYE-WIFI3)

SKYE View 3 User Manual for Windows PC

SKYE View 3 User Manual for Mobile Apps (Android, iOS)

Software (1)

SKYE View 3 for Windows
