ACCU-CAM WiFi 4K

ACCU-CAM WiFi 4K

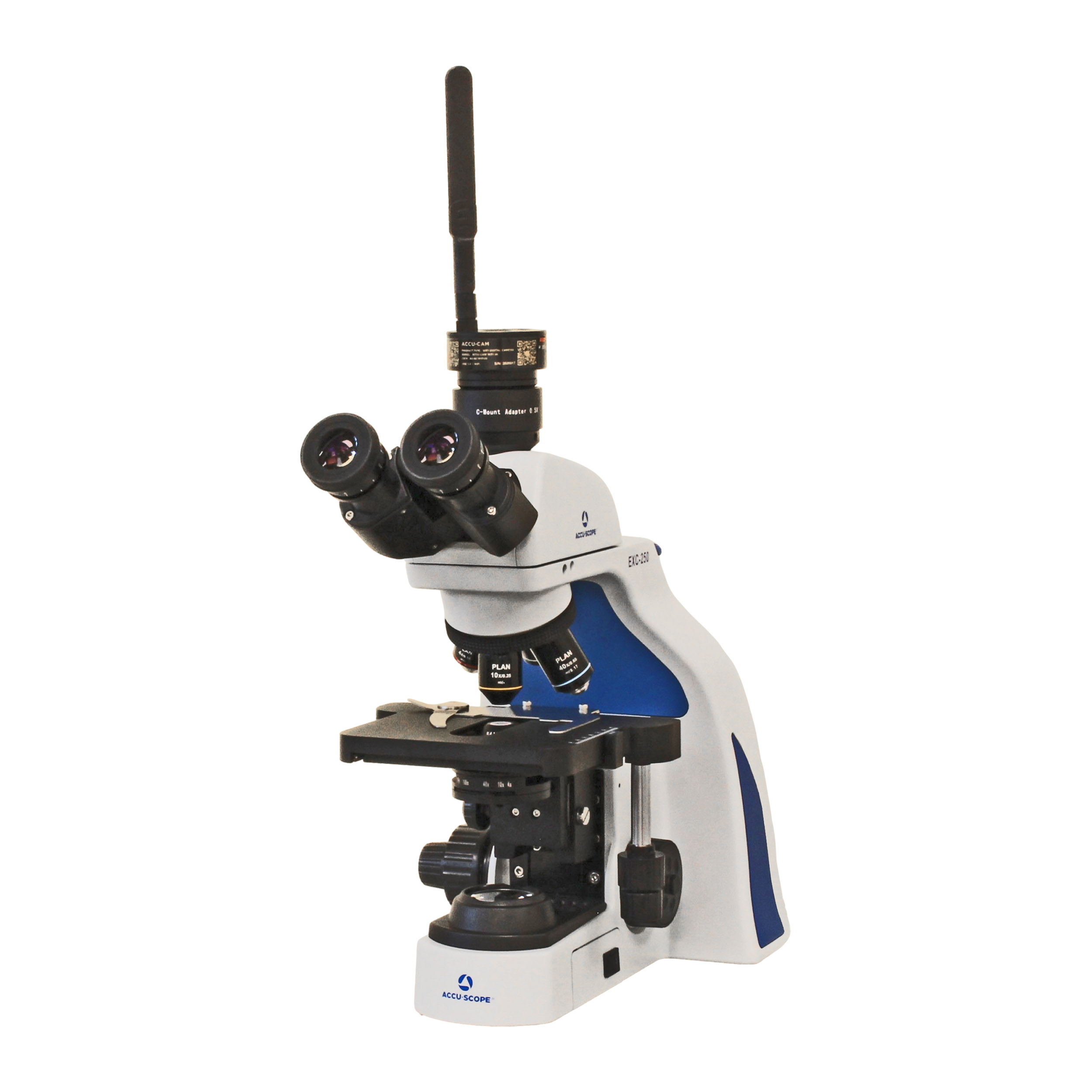

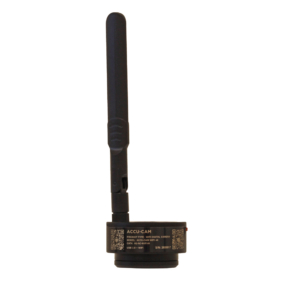

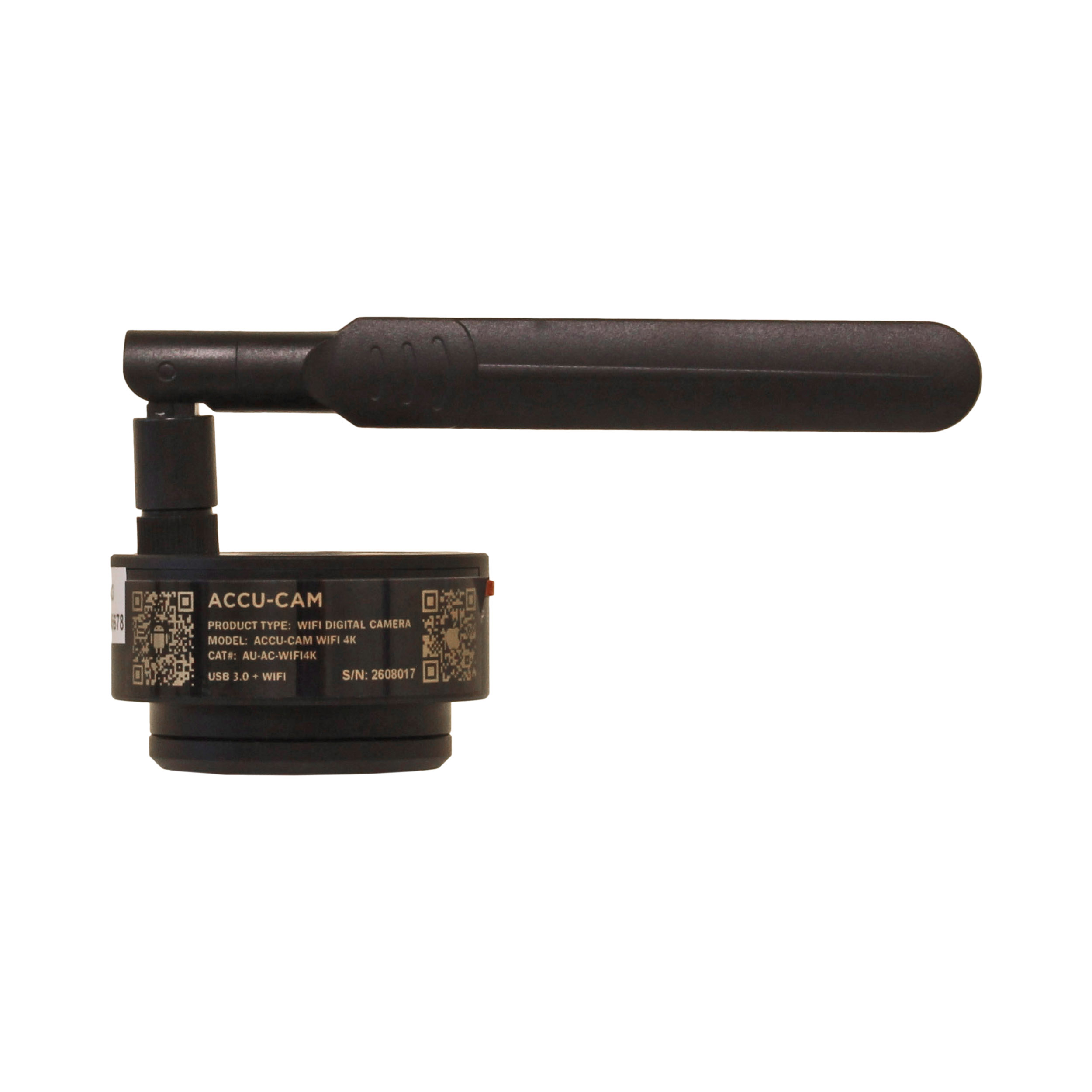

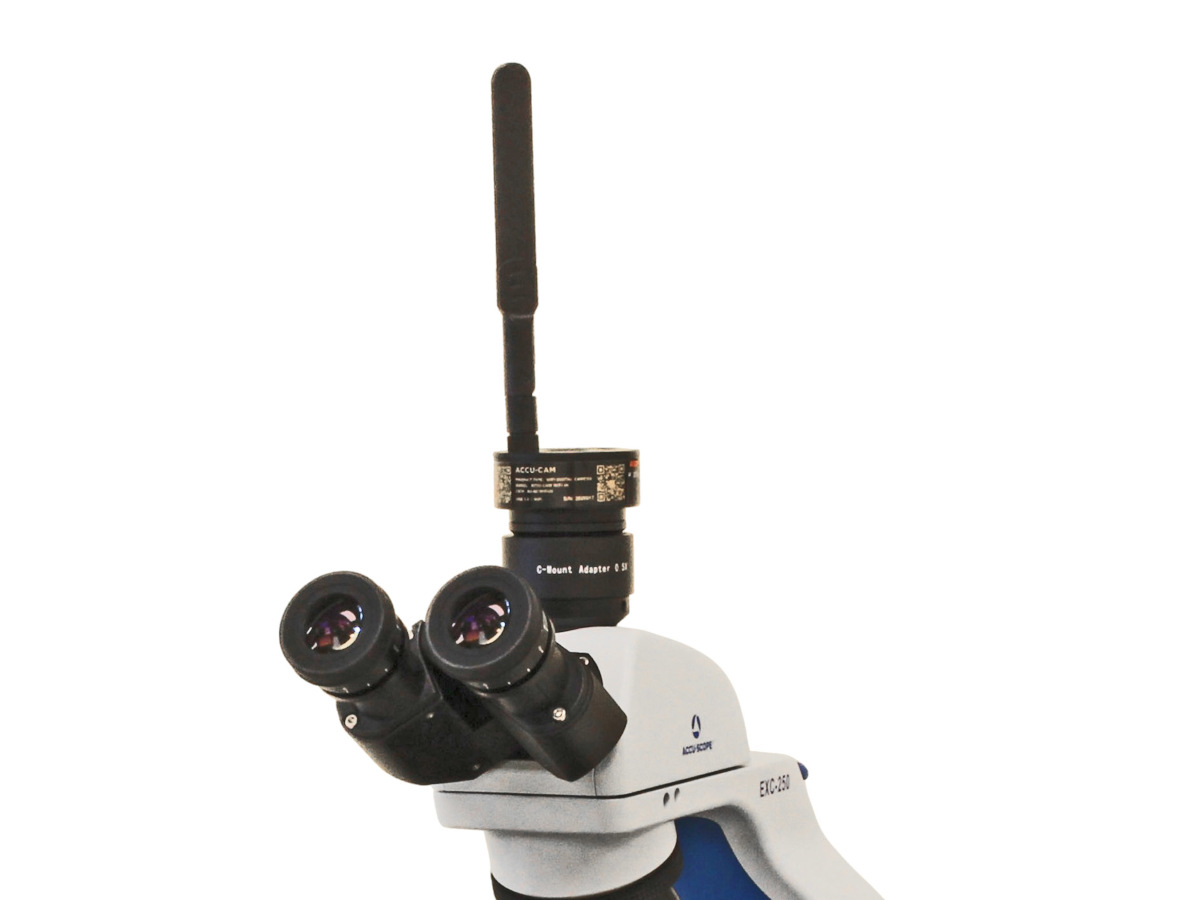

The ACCU-CAM WiFi 4K Microscopy Camera delivers stunning ultra-high-definition color images and video directly to your mobile device via WiFi signals and the AccuView mobile app – no need for a computer. Use the USB-C cable to connect to a Windows PC or Mac and control the camera via AccuView or AccuView LITE software. ACCU-CAM WiFi 4K cameras bring our sharpest imaging yet to the ACCU-CAM lineup, without sacrificing the convenience and value the ACCU-CAM name is known for.





KEY FEATURES

Connectivity and Convenience!

You can connect to the ACCU-CAM WiFi 4K camera through its WiFi signal or by PC with its USB Type-C cable – with frame rates of up to 30fps at full 4K resolution, the choice is yours. Using WiFi connections, multiple mobile devices (up to 5) can connect to the same camera simultaneously.

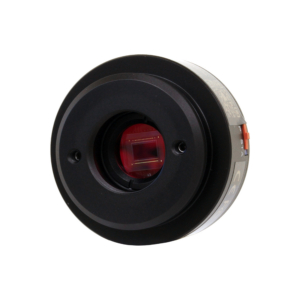

Next-Generation SONY Camera Sensor

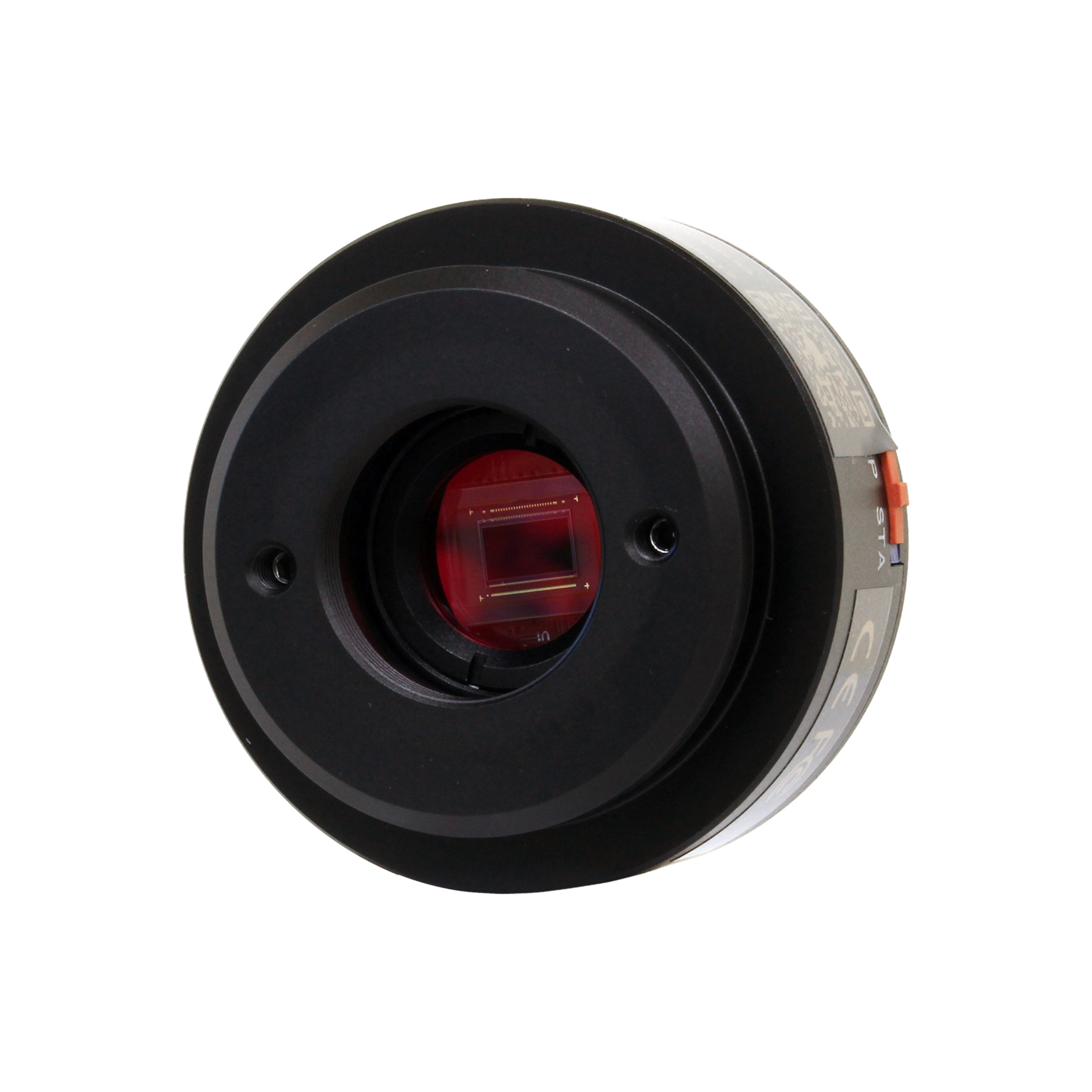

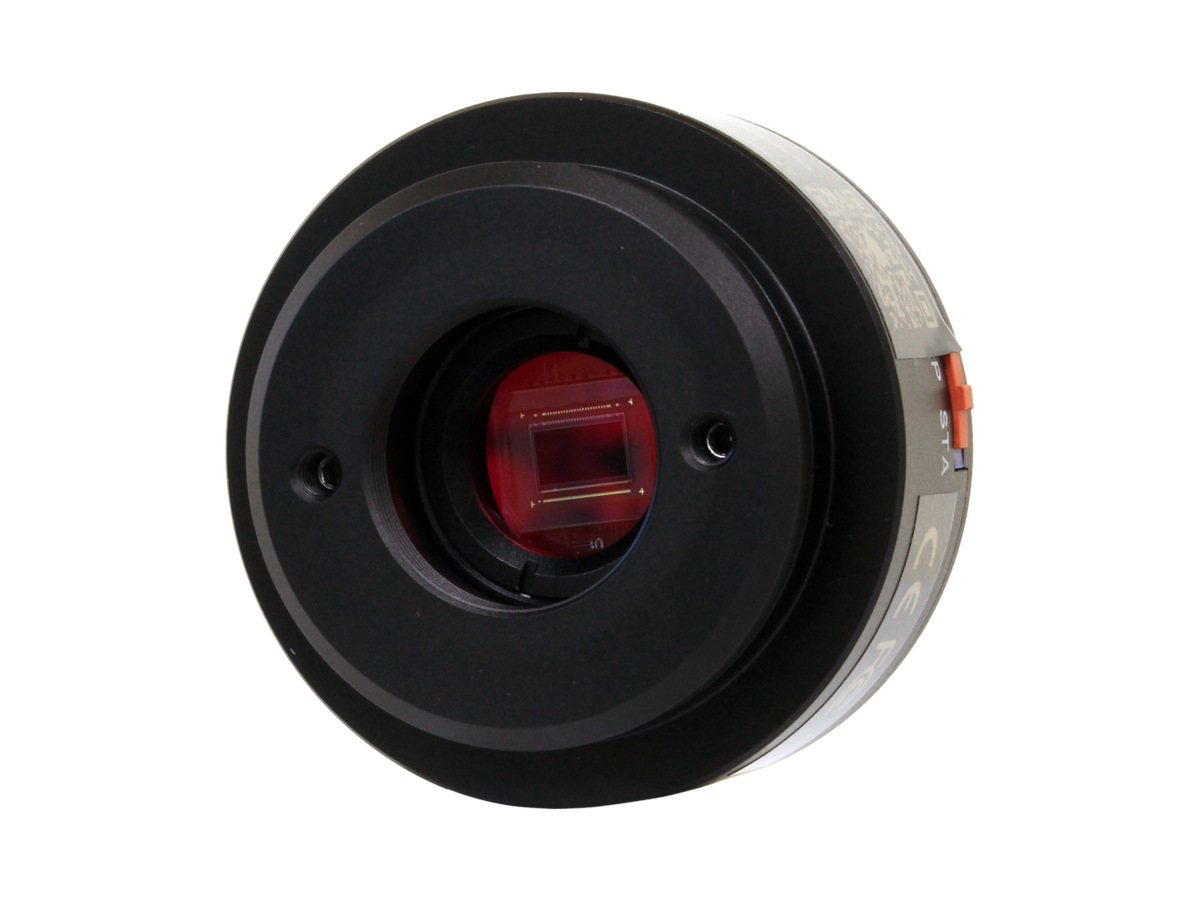

At the heart of the ACCU-CAM WiFi 4K is the Sony STARVIS™ 2 IMX678 color CMOS sensor. Building on the proven performance of the STARVIS sensor family, this latest generation delivers excellent sensitivity, low noise, and outstanding image quality even in challenging lighting conditions – now at a full 8MP, 4K UHD resolution.

Powerful AccuView Mobile Apps & Software

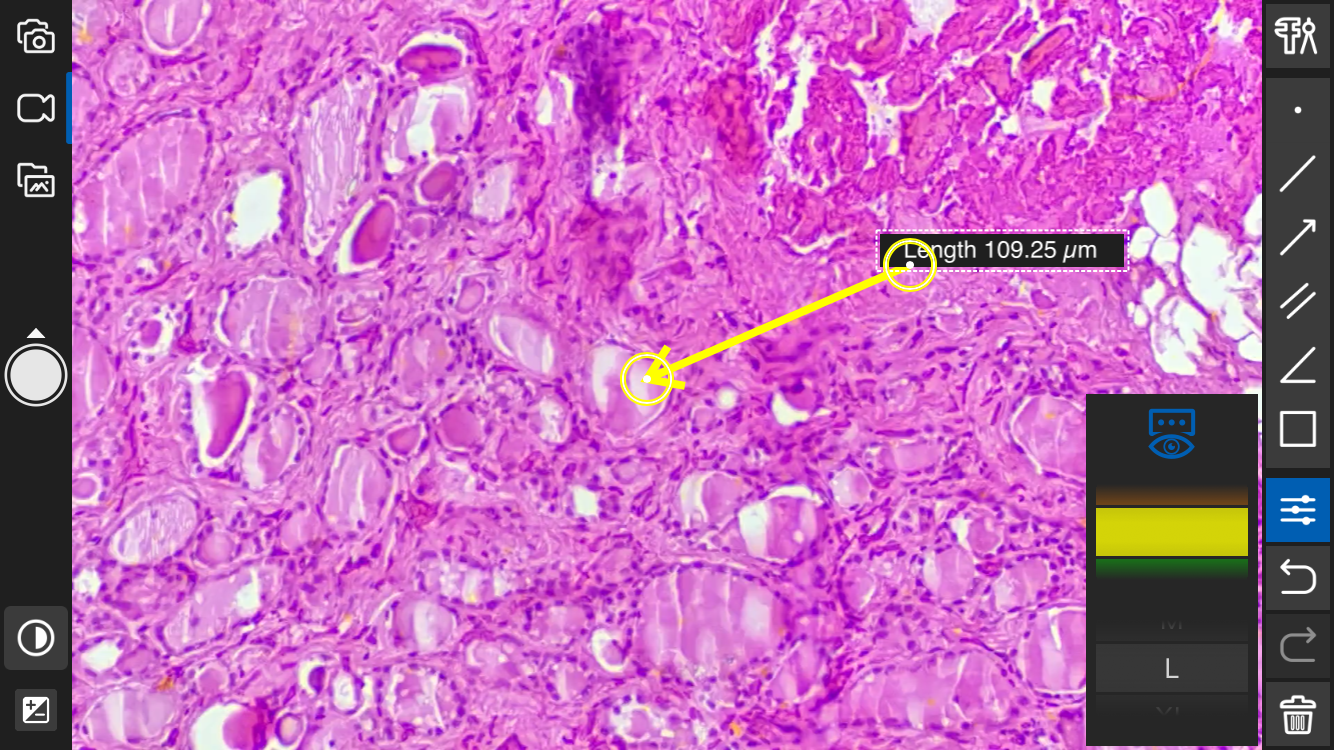

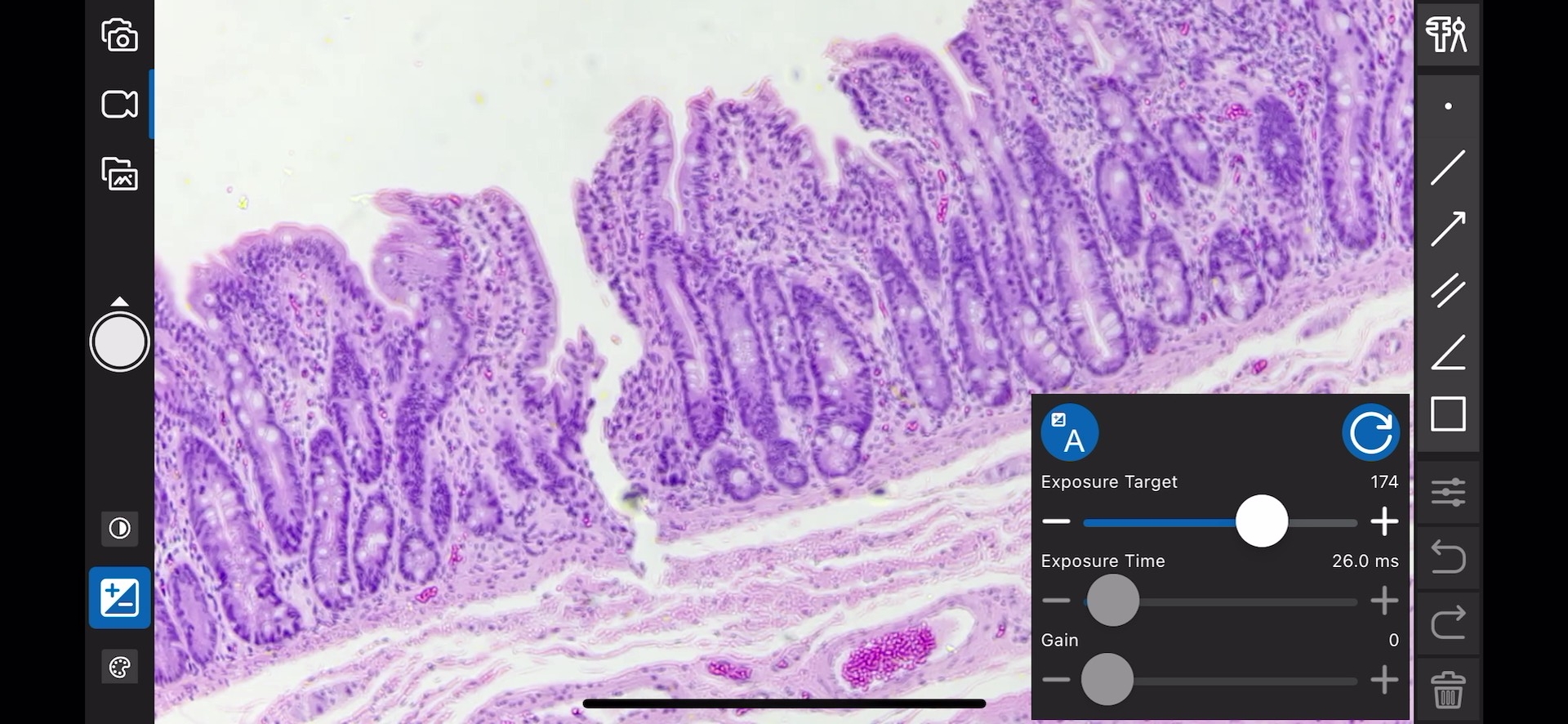

View live images and control your ACCU-CAM WiFi 4K camera with our FREE AccuView software. The mobile app (Android and iOS) is super easy to use and gives you just the right amount of control to capture great images and video.



The PC app brings full camera control, acquisition, measurement and analysis to microscopy imaging, including real-time intelligent flatfield correction, dynamic measurements, automatic counting, and much more! Key software features include:

  • Intuitive user interface
  • Powerful image processing tools
  • Calibrate, measure and annotate
  • Image stitching (requires mechanical stage)
  • Extended Depth of Focus
  • Windows and MacOS* versions (*AccuView Lite only)

AccuView Lite provides a simplified user interface together with the most popular and essential features for a streamlined experience. AccuView Lite is available for both Windows PC and MacOS. Learn more about AccuView  HERE.

Download the mobile app:



Which ACCU-CAM WiFi is Right for You?

The ACCU-CAM WiFi 4K joins the ACCU-CAM WiFi, expanding the lineup rather than replacing it. Both cameras share the same wireless convenience and AccuView software ecosystem – the right choice comes down to the resolution and performance your application demands.

ACCU-CAM WiFi 4K is built for users who need the sharpest possible image: research documentation, image analysis and measurement, quality inspection, and any application where fine detail matters and long-term archival quality counts.

ACCU-CAM WiFi remains an excellent, budget-friendly choice for routine teaching, demonstration, and general lab use where 1080p resolution gets the job done.


Specifications
MODEL
AU-AC-WIFI4K
SENSOR
Sony STARVISâ„¢ 2 IMX678 color CMOS
SENSOR SIZE
1/1.8″; 0.5x C-mount adapter recommended
RESOLUTION
3840 (H) x 2160 (V); 8MP
PIXEL SIZE
2.0µm x 2.0µm
FRAME RATE
USB-C: 30 fps @ 3840×2160, 30 fps @ 2688×1512, 30 fps @ 1920×1080; Wi-Fi: 30 fps @ 3840×2160, 30 fps @ 1920×1080, 30 fps @ 1280×720
SHUTTER MODE
Rolling
IMAGE TRANSMISSION
WiFi, USB 3.0 Type-C
IMAGE CAPTURE
8MP to mobile device or PC
VIDEO CAPTURE
30fps 4K UHD video recording to mobile device or PC
EXPOSURE TIME
0.04ms – 1000ms
AUTOMATIC SETTINGS
Exposure, White Balance
MANUAL SETTINGS
Exposure, Gain, Brightness, Noise Reduction, White Balance, Gamma, Saturation
SPECTRAL RESPONSE
380nm – 650nm
ADC DEPTH
12bit
OPERATING CONDITIONS
-10°C – 50°C
DATA INTERFACE
USB-C, Wi-Fi 802.11ac
POWER SUPPLY
USB-C, DC 5V/2A
CAMERA SIZE / WEIGHT
50 x 50 x 112mm / 500g
PC Imaging Software
ACCU-VIEW Imaging Software for Windows and MacOS
Advanced Camera Controls: live/still image measurement and annotation; flat field correction; extended depth of focus (focus stacking); image stitching (requires mechanical stage)
Image Types: TIF, JPG, PNG
Video Types: MJPEG
TWAIN and DirectShow plugins available
System Requirements (for PC Imaging Software)
Intel Core 2, 2.8GHz or higher; 16GB RAM or more;
USB 2.0 Hi-Speed port or higher
Windows 7, 8, 10, 11 (64-bit recommended); Mac OS 10.4 or higher
System Requirements for Mobile Devices
Android 5.1 or higher
Dual-core processor 1.7GHz or higher
RAM memory: 3GB or more
Storage RAM: 8GB or more
Supports WiFi 802.11ac protocol
iOS 11.0 or higher
Supports WiFi 802.11ac protocol

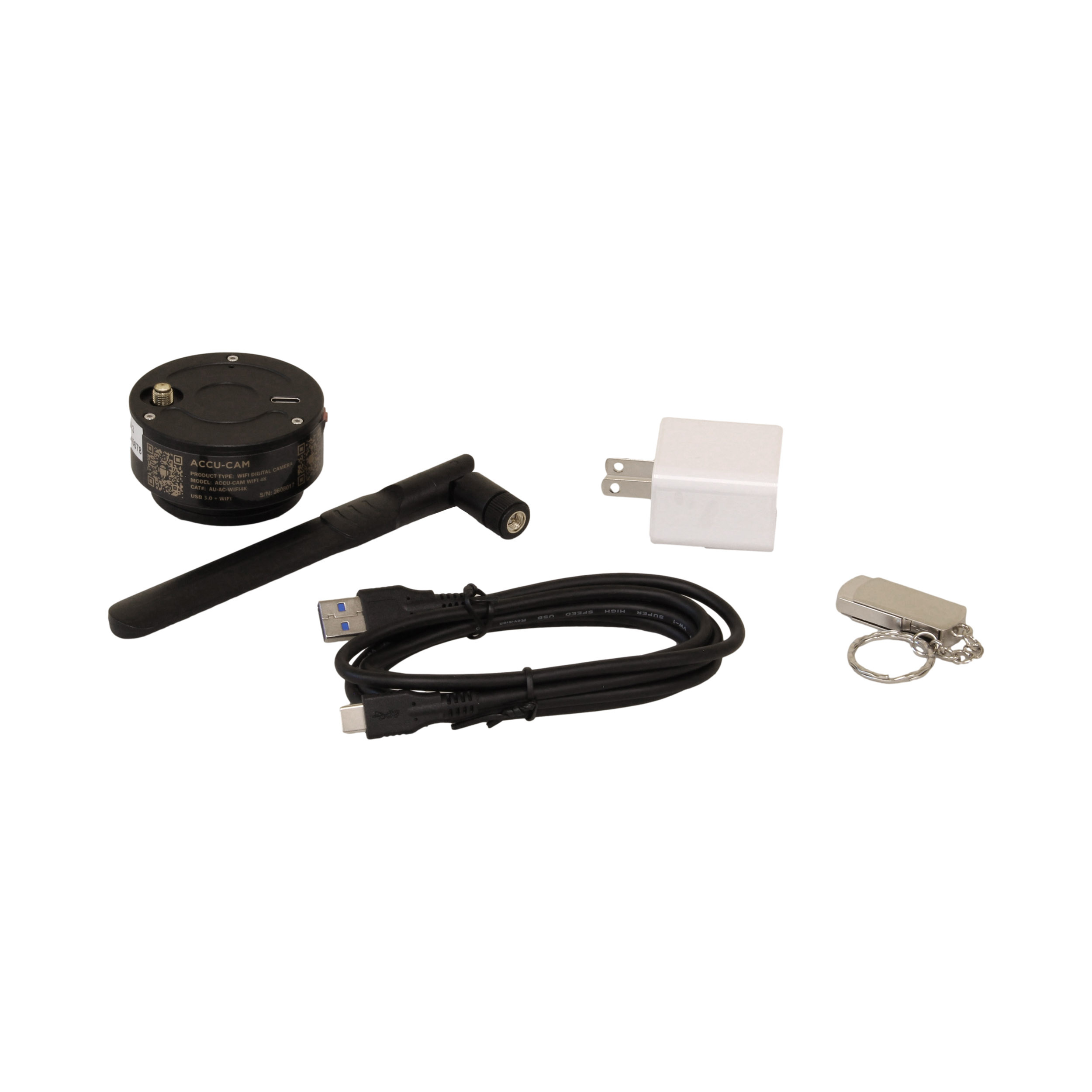

What’s in the Box?
ACCU-CAM WiFi 4K camera, WiFi antenna, USB cable, power adapter, USB flash drive with user manuals and software installers

Manuals (4)

AccuView Mobile App Quick Start Guide

AccuView LITE Help Manual

AccuView Quick Help Manual for Windows

AccuView Complete Instruction Manual

Software (5)

AccuView Software for Windows

AccuView LITE Software for Windows

AccuView LITE Software for Mac

AccuView TWAIN Driver

AccuView DirectShow Software
