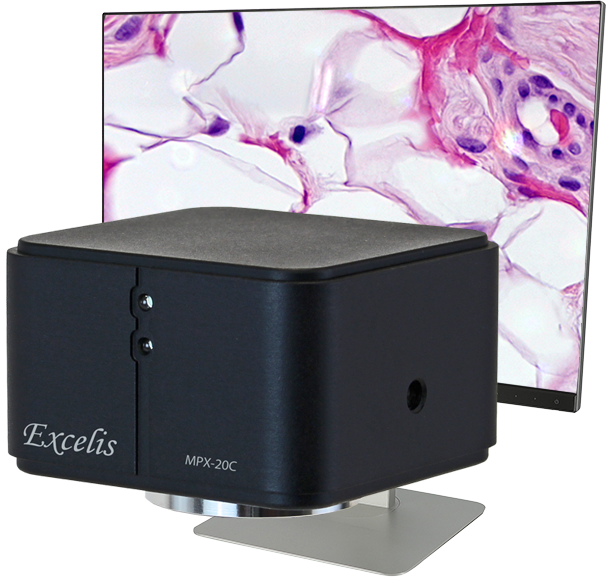

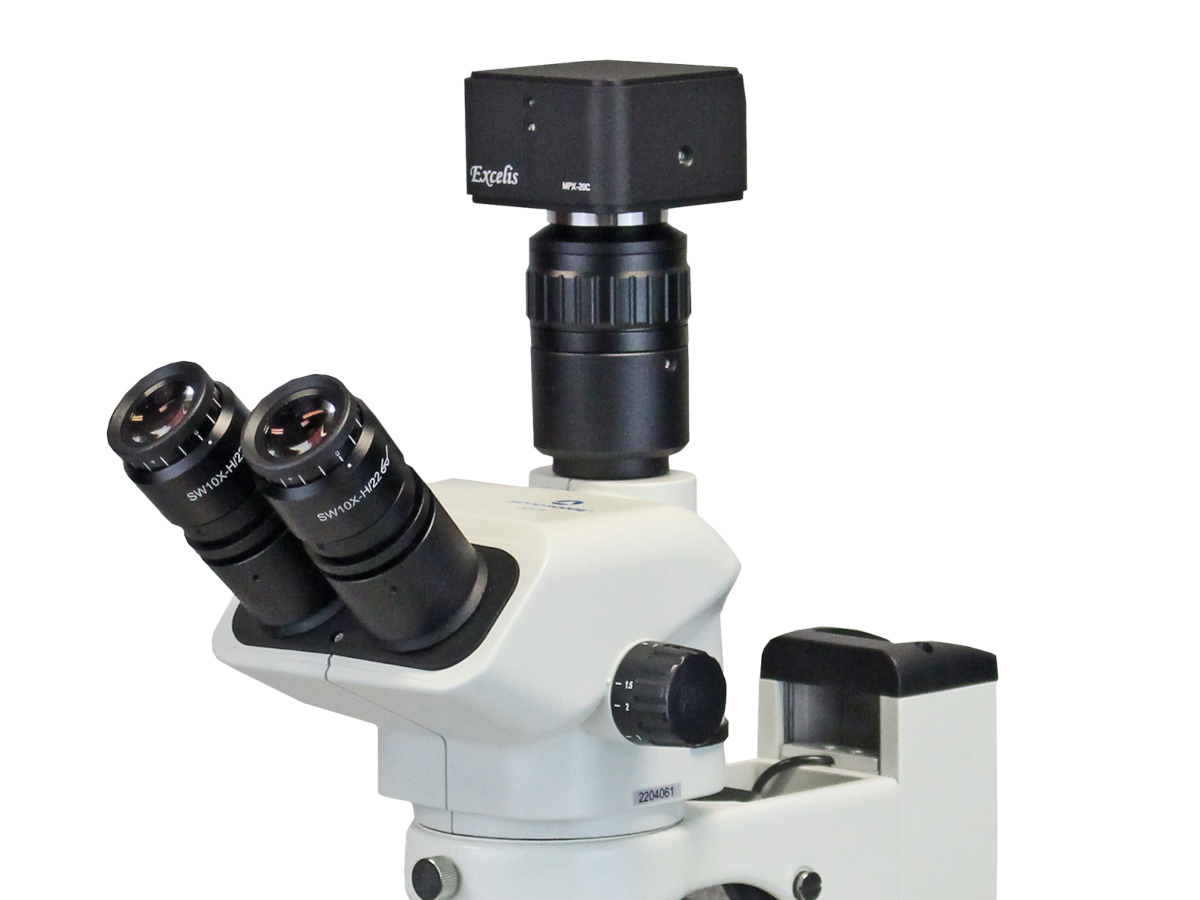

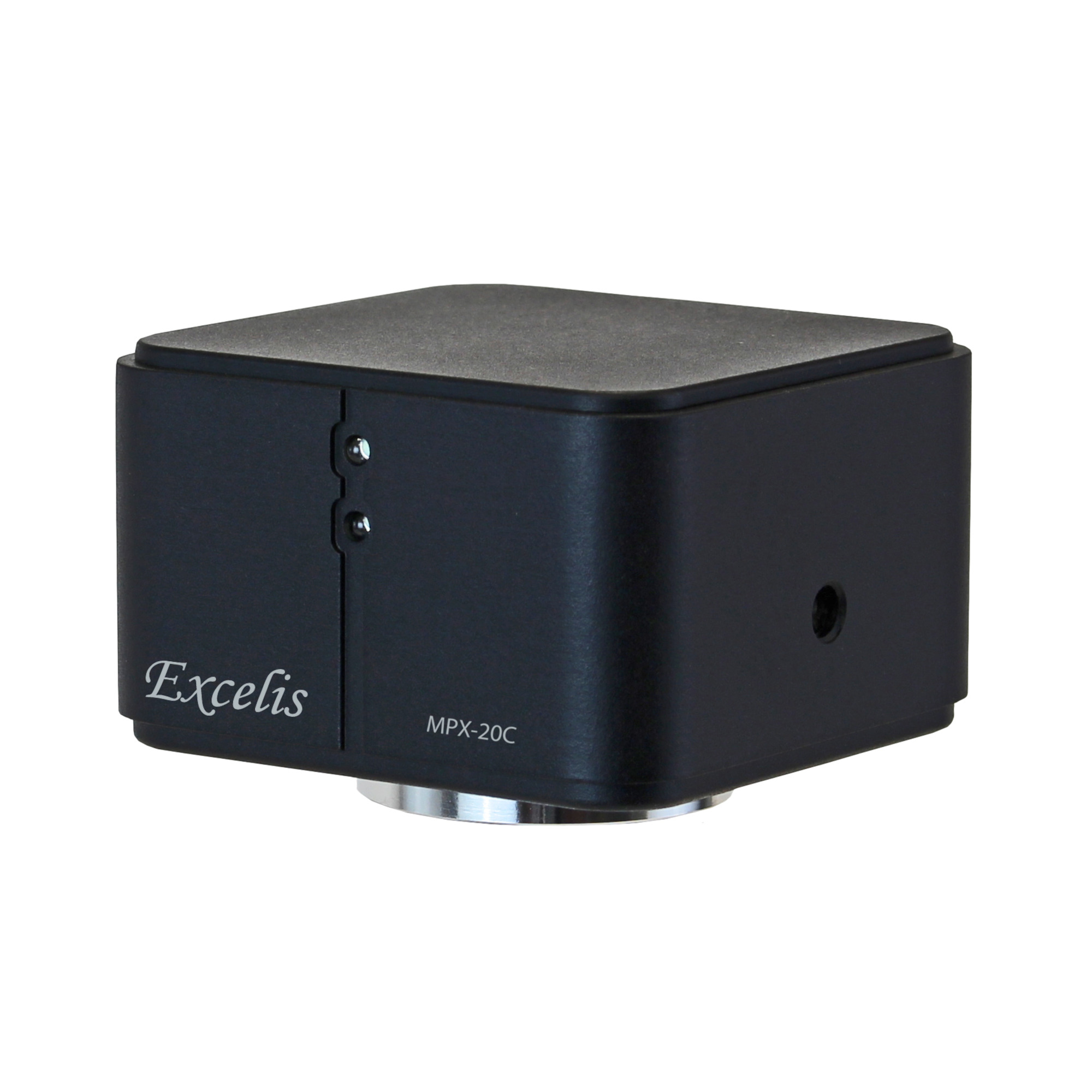

The Excelis MPX-20C captures images with excellent color reproduction at a blazing fast 40fps via USB 3.0 connection to a Windows or MacOS computer.  View live images and control all features of the MPX-20C with our FREE CaptaVision+ software for Windows and MacOS.  The combination of the 2.4μm pixels, high 20MP resolution and fast rolling shutter make the MPX-20C is a great choice for low magnification imaging such as using stereo microscopes, and as an all-around capture device where fast frame rates are not essential.

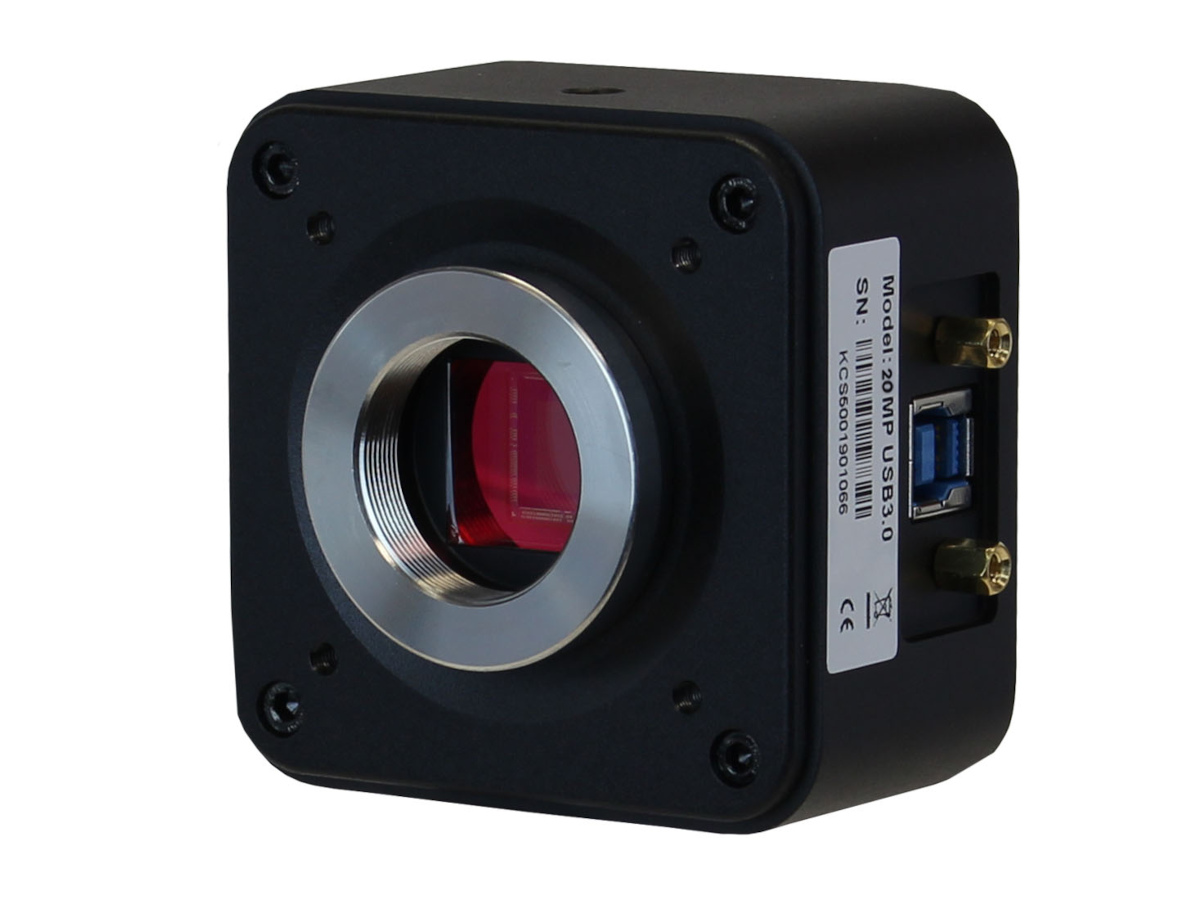

The MPX-20C is based on the Sony Exmor® IMX183 CMOS camera sensor.  The rolling shutter delivers crisp images even at speeds up to 15fps.  With back-illumination, the IMX183 sensor provides all three advantages of high resolution, high sensitivity and high dynamic range.  Use binning during imaging to achieve faster frame rates.

The Excelis MPX-20C is fully compliant with the McCain National Defense Authorization Act 889 (NDAA 889)! It does not use any electronics or components from prohibited suppliers. You can learn more at the Federal Register.

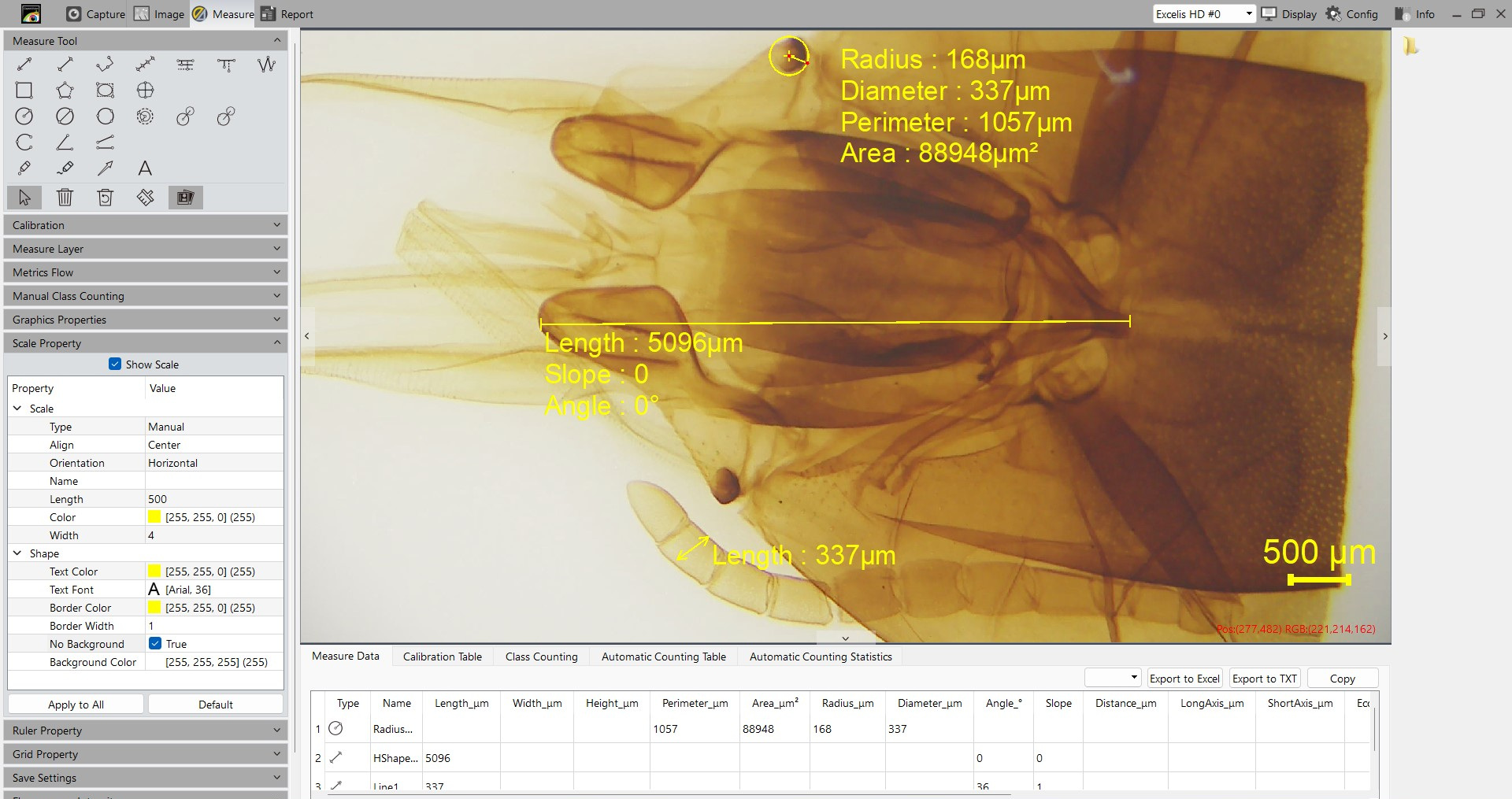

Our FREE CaptaVision+ software brings excellent camera controls and new dimensions to imaging including real-time intelligent flatfield correction, dynamic measurements, automatic counting, and much more!  Key software features include:

• Intuitive & customizable user interface
• Capture still images, record live and time lapse video
• Simple calibration and measurements
• Advanced control of exposure, gain, color balance, etc.
• Powerful image processing tools
• Flexible report generation and data export

CaptaVision+ is available for both Windows and MacOS.  Learn more about CaptaVision+ HERE.
