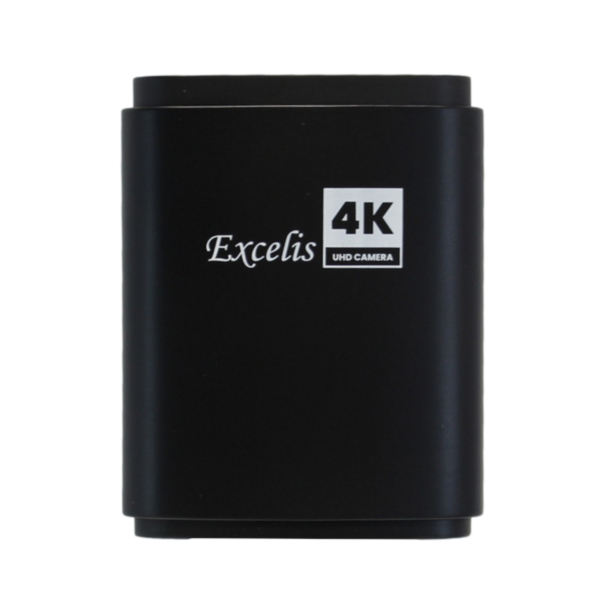

EXCELIS™ 4K

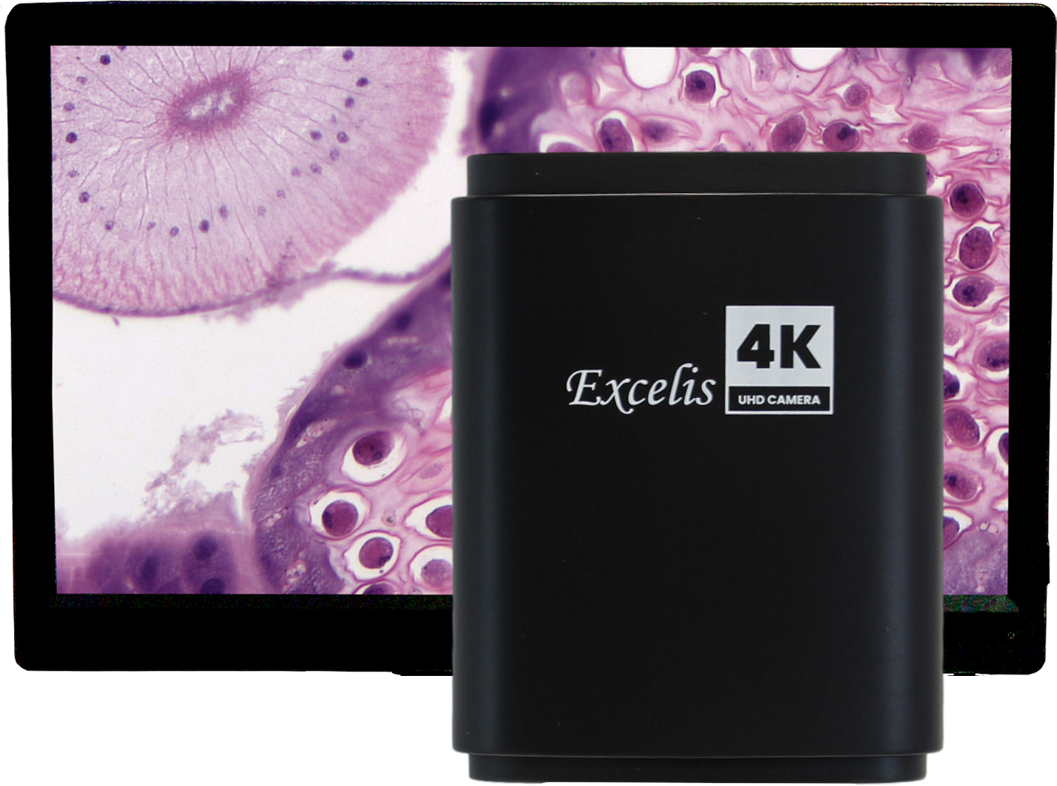

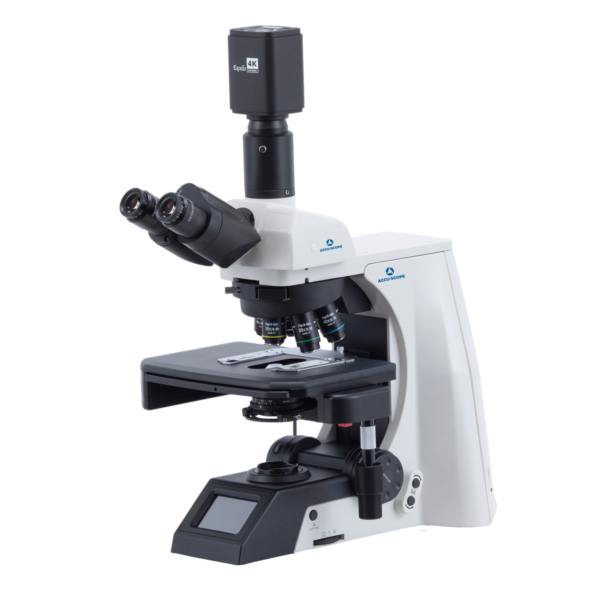

The Excelis™ 4K Ultra High-Definition color camera delivers fast, full 4K, 2160p live images or video to a 4K monitor. Ideal for microscopy imaging in clinical, research and educational environments, the Excelis 4K gives you 3 ways to connect to the camera and view images: Direct to monitor (control by built-in software), to PC via USB (control by CaptaVision+ software), or to PC via local area network (LAN).
All Excelis cameras are fully compliant with the McCain National Defense Authorization Act 889 (NDAA 889)! They do not use any electronics or components from prohibited suppliers. You can learn more at the Federal Register.

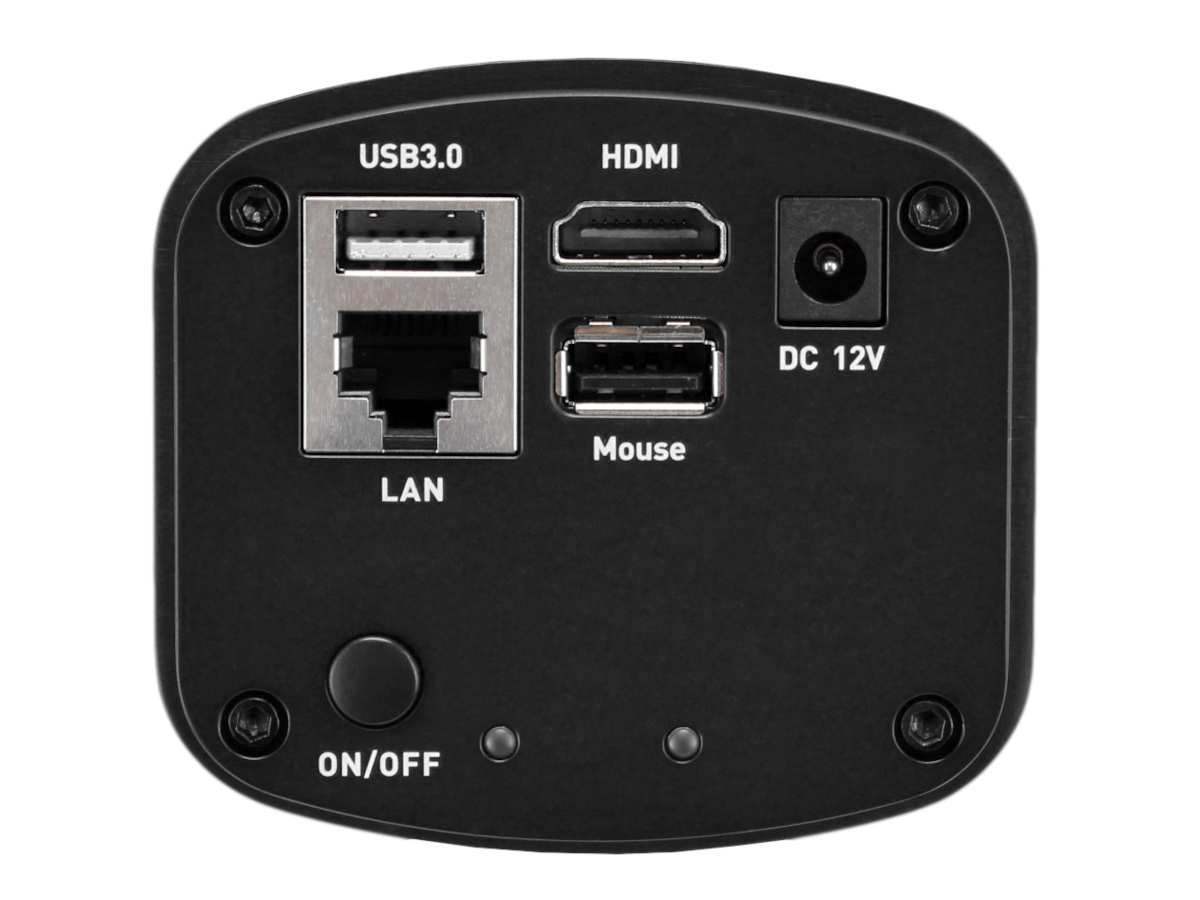

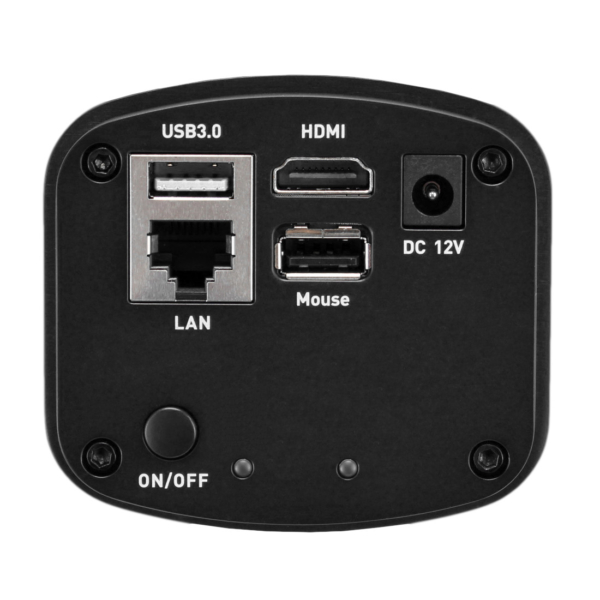

The Excelis 4K’s unique architecture gives you three ways to connect to the camera and view/capture images and video. 1) Connect directly to a 4K monitor and use the built-in software for viewing – no PC required! Attachable monitor is option, or provide your own monitor. 2) Connect to a PC via USB 3.0 and view images with our powerful CaptaVision+ software (Windows or MacOS). 3) Connect to the LAN via Ethernet and view images on a LAN-connected PC using CaptaVision+. The Excelis 4K delivers video over either HDMI or USB at 30fps.

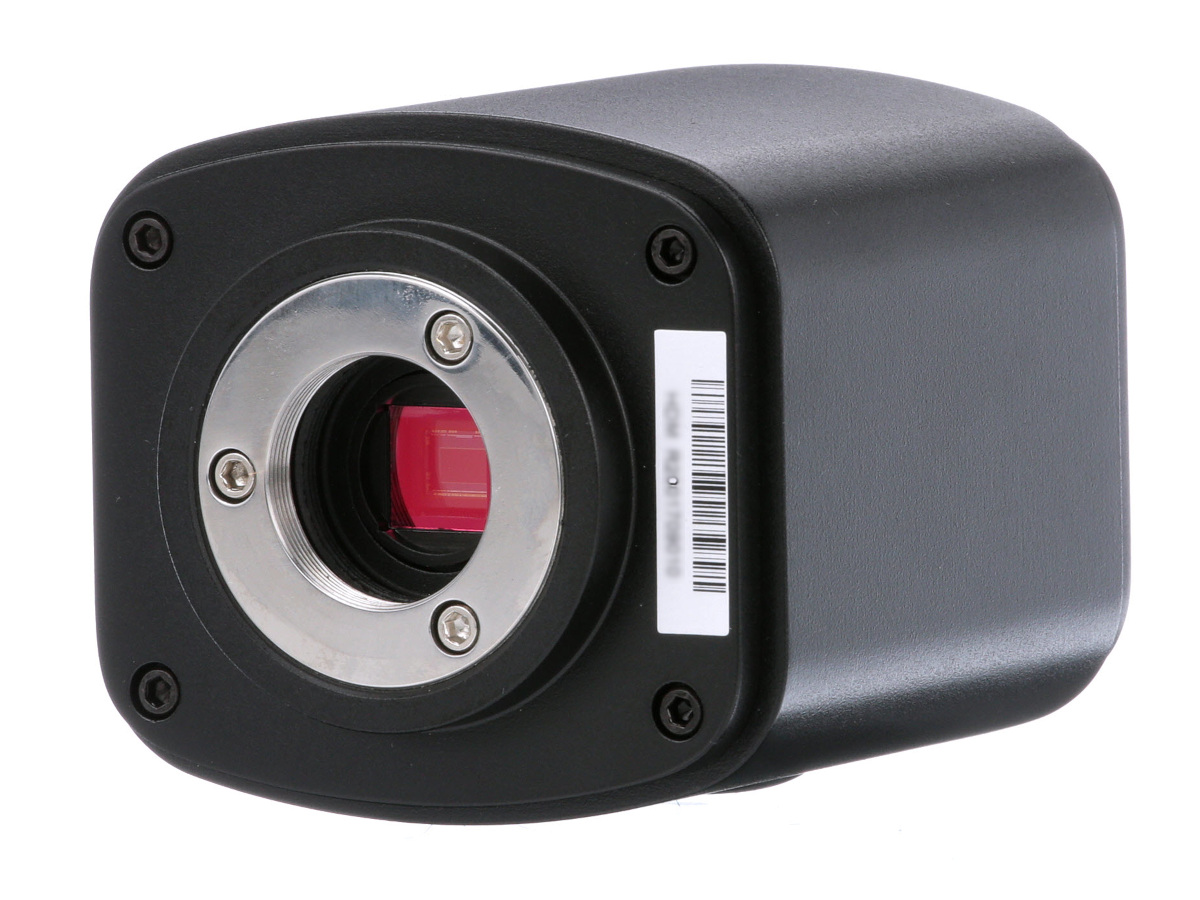

An 8.3MP Sony STARVIS™ IMX585 color CMOS sensor is at the heart of the Excelis 4K. Featuring a true 4K UHD aspect ratio (3840×2160),rolling shutter and back illumination for improved sensitivity, the Excelis 4K delivers high resolution, video-rate live images with superb color rendition.

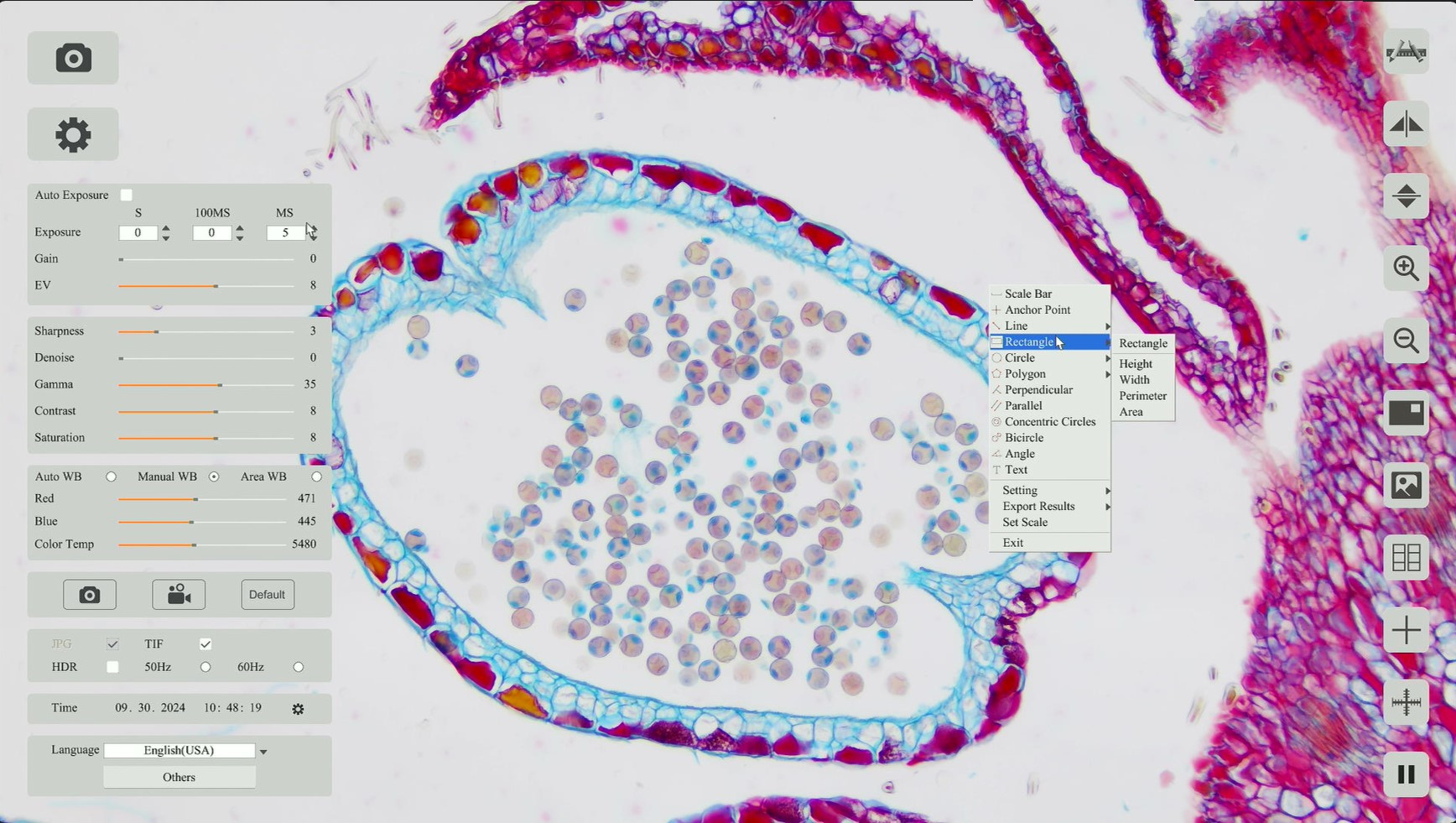

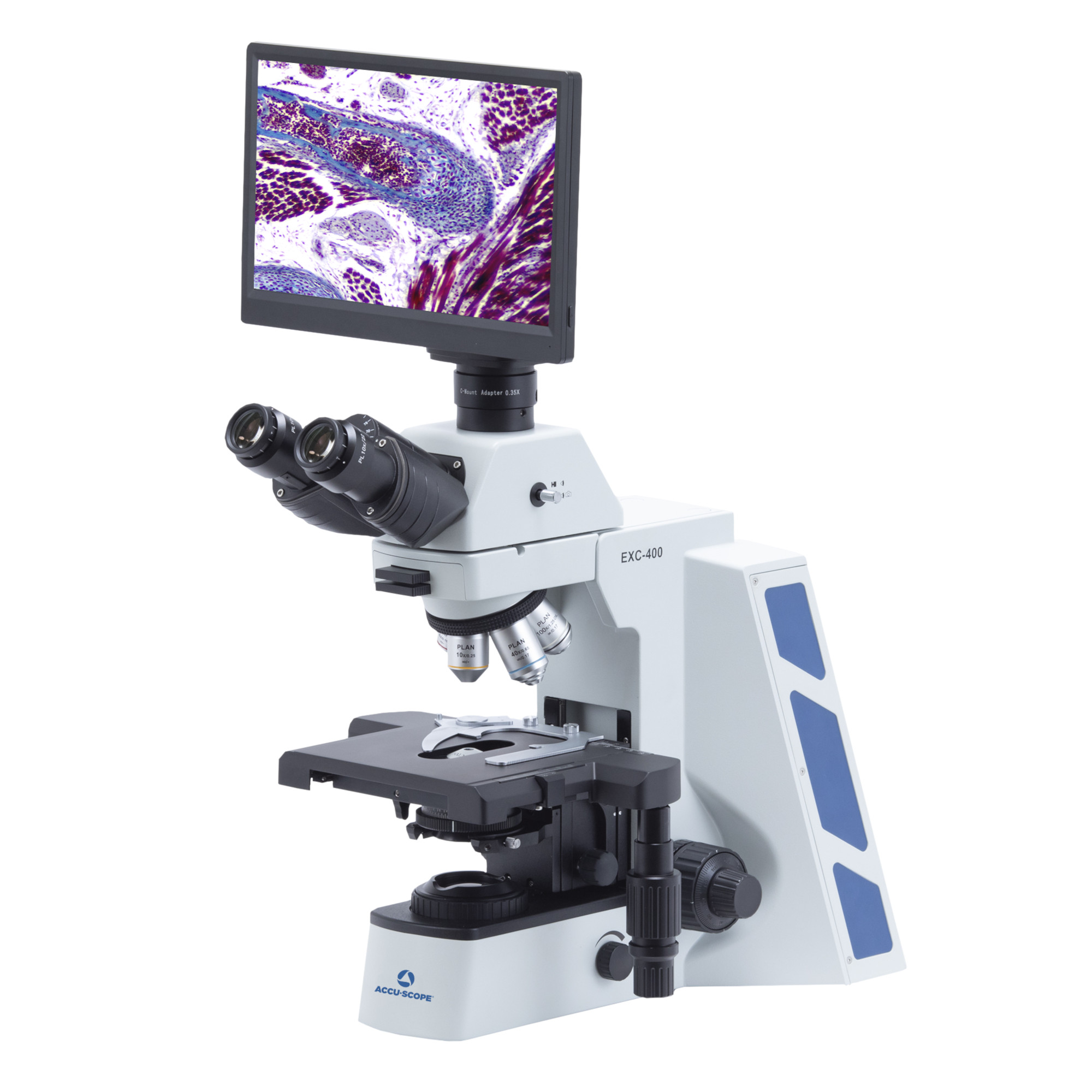

With our optional, attachable 4K OLED or HD monitor, you can open more space around your microscope. The attachable monitor provides enhanced ergonomics by allowing a more natural viewing position of the sample. For stand-alone operation without the need for a PC, use the built-in software to control the camera settings, image acquisition, and perform measurements (requires a USB mouse, included).
The Excelis 4K is fully compliant with the McCain National Defense Authorization Act 889 (NDAA 889)! It does not use any electronics or components from prohibited suppliers. You can learn more at the Federal Register.

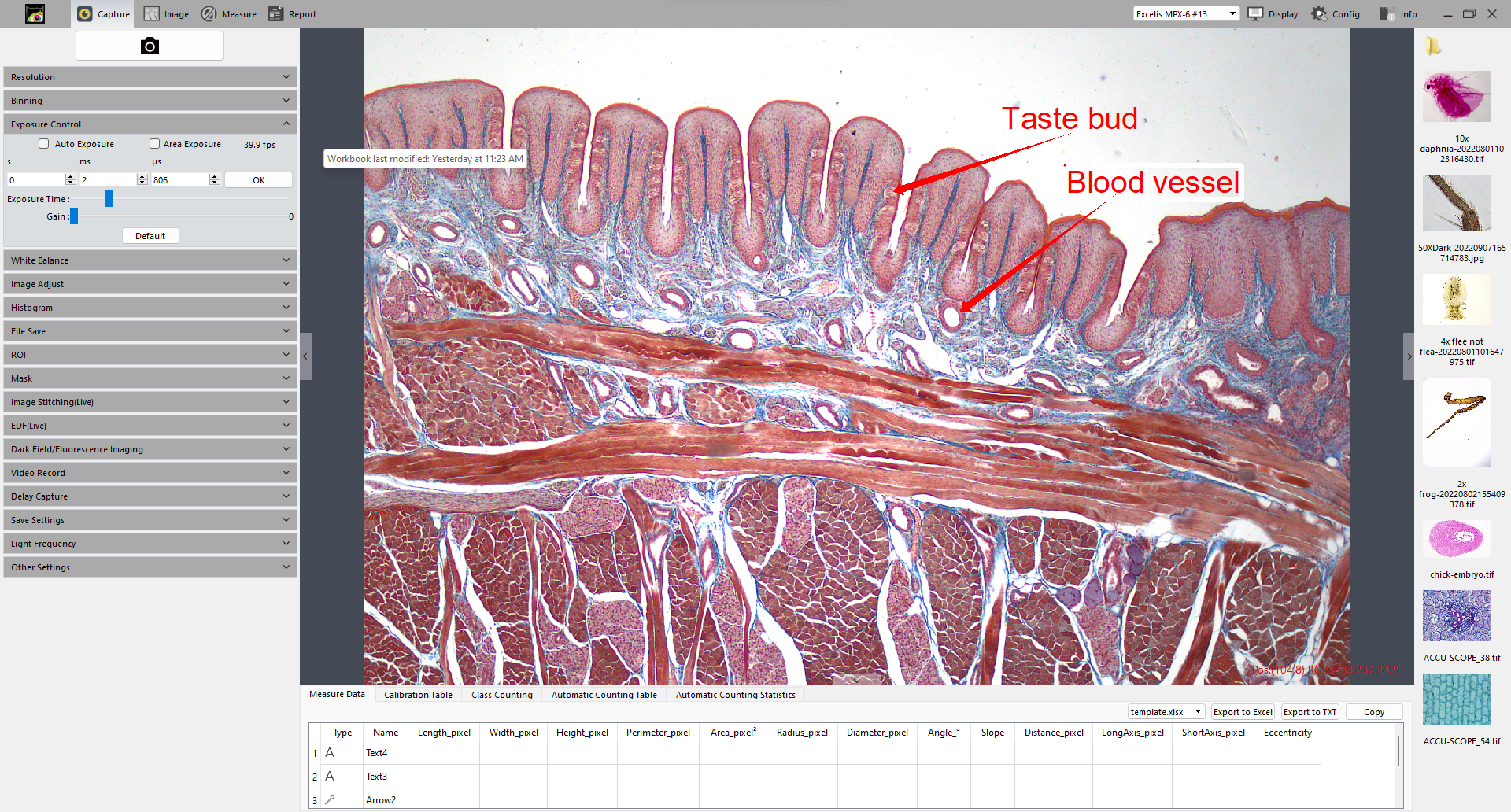

Our FREE CaptaVision+ software brings excellent camera controls and new dimensions to imaging including real-time intelligent flatfield correction, dynamic measurements, automatic counting, and much more! Key software features include:
CaptaVision+ is available for both Windows and MacOS. Learn more about CaptaVision+ HERE.
