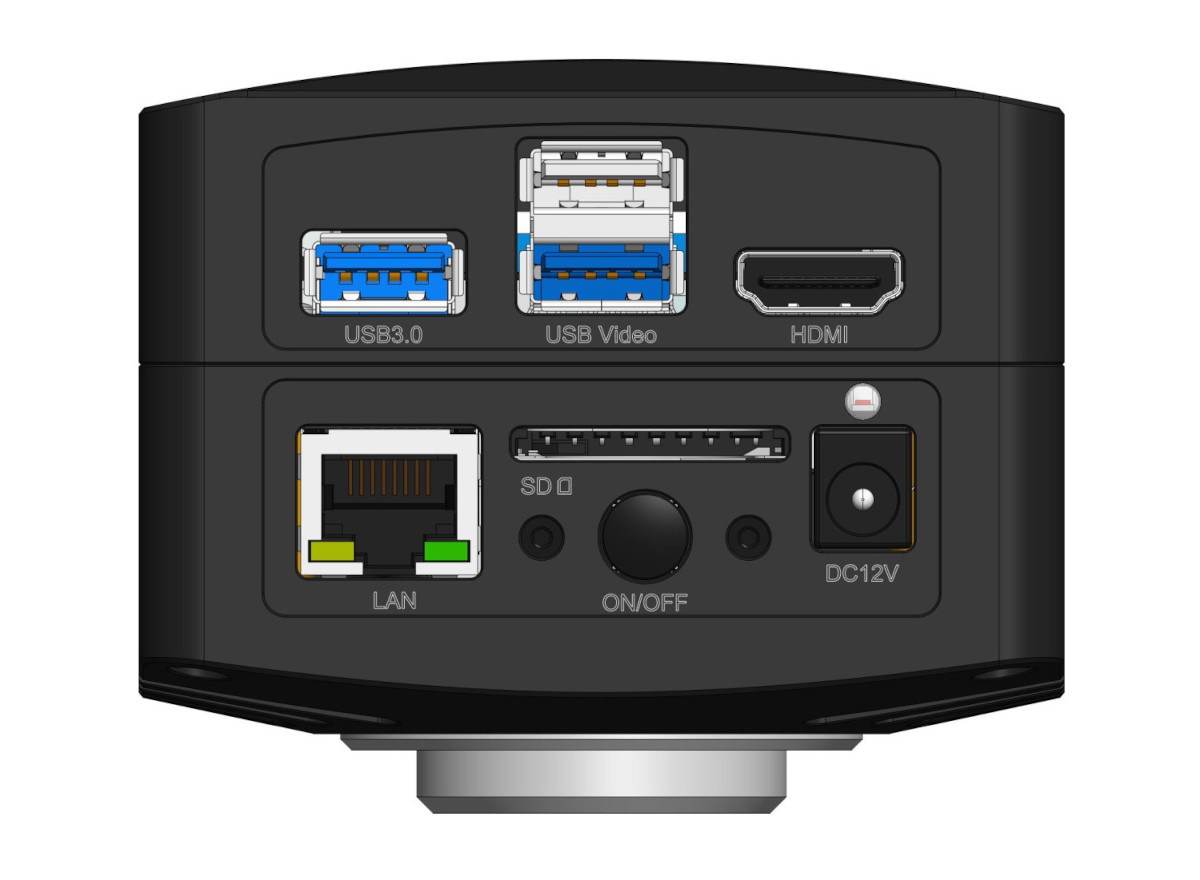

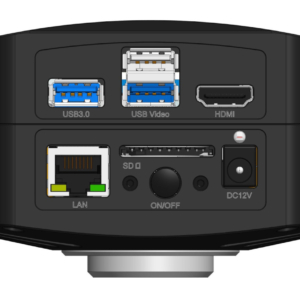

The PathoPix 4K provides four ways to connect to the camera and view/capture images and video.  1) Connect directly to a 4K monitor and use the built-in software for viewing – no PC required!  An attachable HD monitor is optional, or provide your own HDMI-ready monitor.  Easily save images and video directly to a USB flash drive or SD card (not included)  2) Connect to a PC via USB 3.0 and view images with our powerful ALTRAview software for Windows (use ALTRAview LITE for MacOS).  3) Connect to the LAN via Ethernet and view images on a LAN-connected PC using ALTRAview (MacOS not supported).  4) Attach the included 5G WiFi adapter and use a mobile device with the ALTRAview mobile app (Android and iOS) to stream live video right to your device!  The PathoPix 4K delivers video over either HDMI or USB at a fast 60fps.

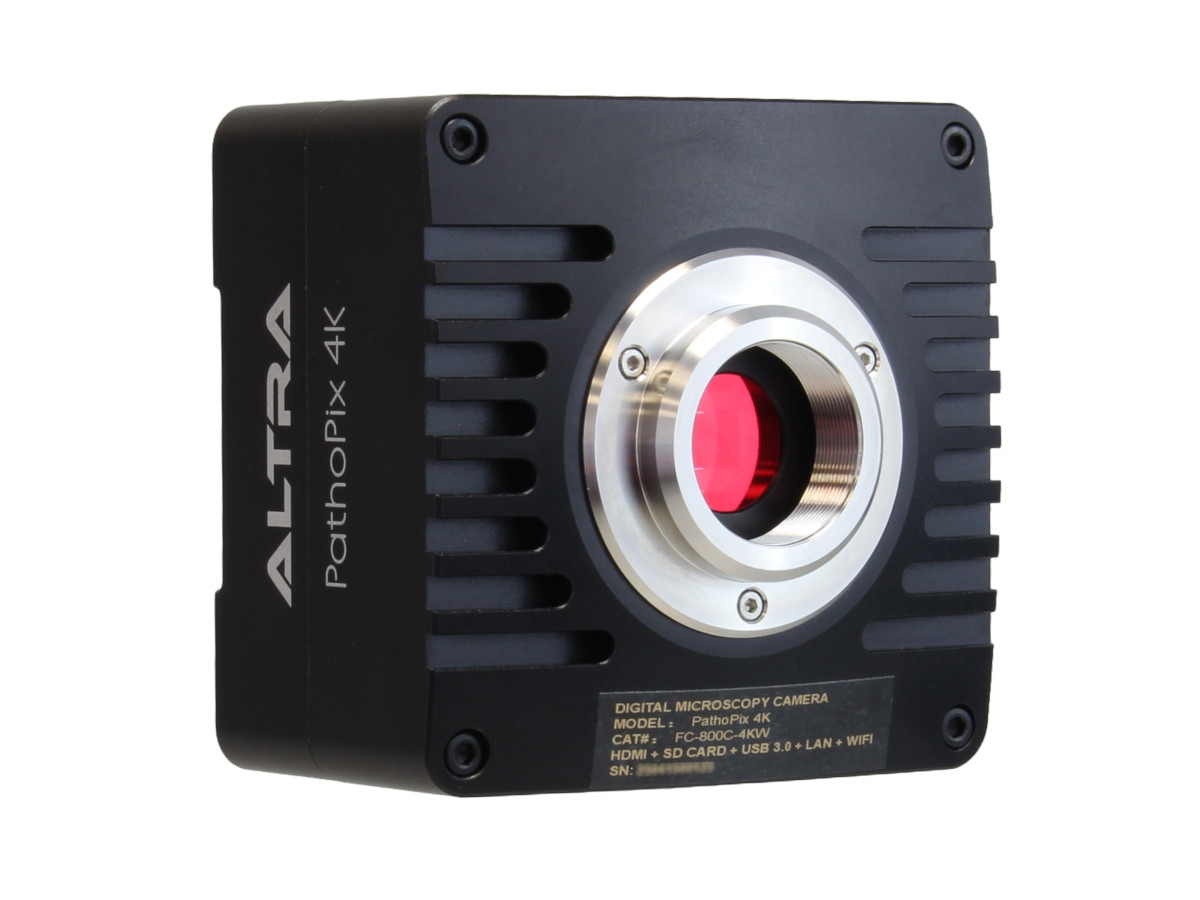

An 8.3MP Sony STARVIS™ IMX585 color CMOS sensor is at the heart of the PathoPix 4K.  Featuring a true 4K UHD aspect ratio (3840×2160), rolling shutter and back illumination for outstanding sensitivity (5970mv at 1/30s), the PathoPix4K delivers high resolution, video-rate live images with superb color rendition.

With our optional, attachable OLED monitor, you can open more space around your microscope.  The attachable monitor provides enhanced ergonomics by allowing a more natural viewing position of the sample. For stand-alone operation without the need for a PC, use the built-in software to control the camera settings, image acquisition, and perform measurements (requires a USB mouse, included).

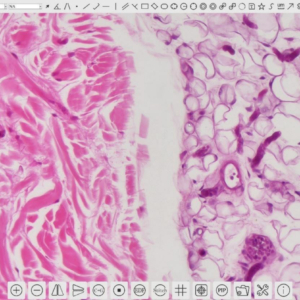

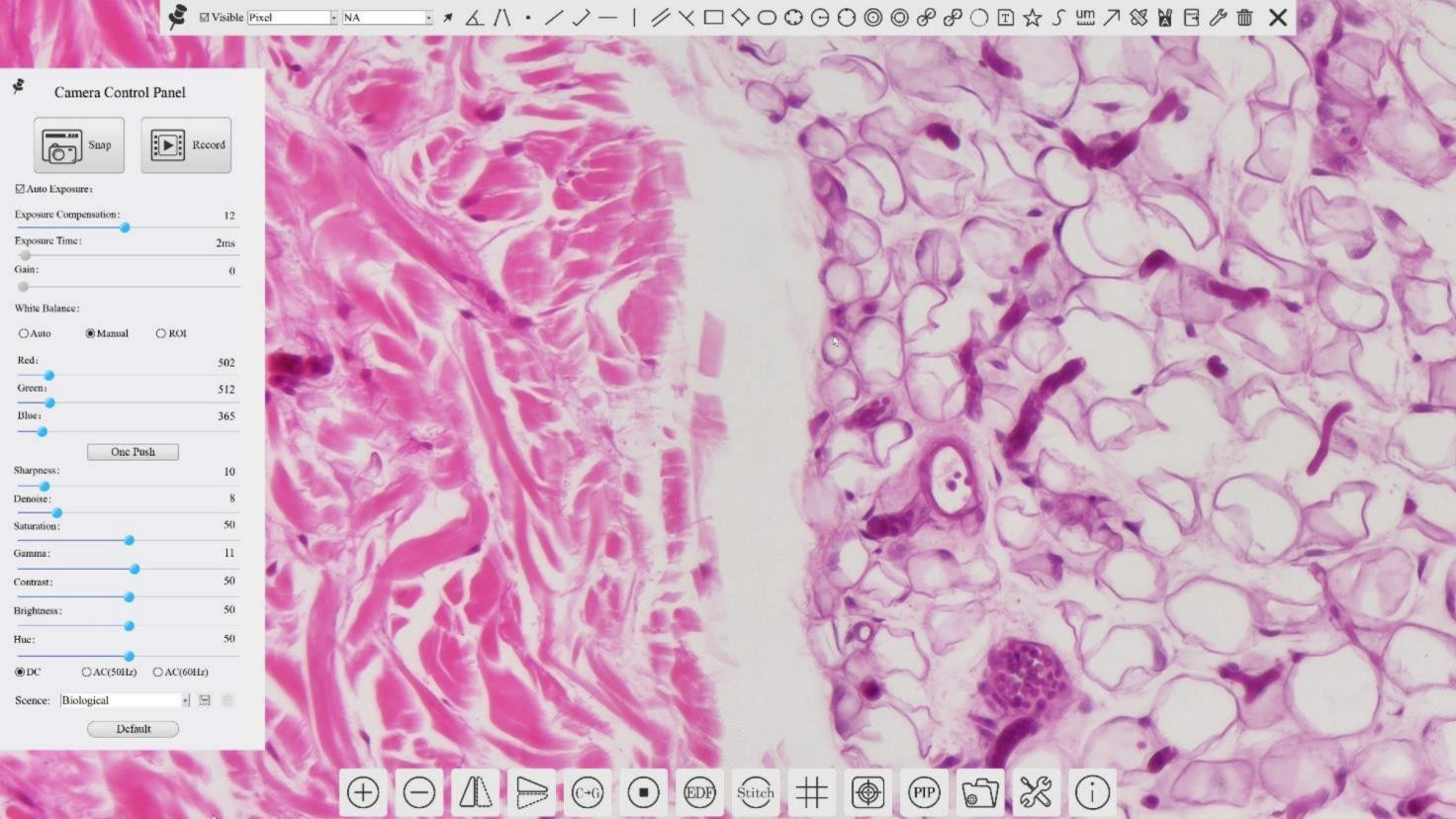

Our FREE ALTRAview software provides new dimensions to imaging, image processing and analysis including real-time intelligent flatfield correction, dynamic measurements, automatic counting, and much more! Key software features include:

• Intuitive & customizable user interface
• Capture still images, record live and time lapse video
• Simple calibration and measurements
• Advanced control of exposure, gain, color balance, etc.
• Powerful image processing tools
• Flexible report generation and data export

ALTRAview is available for Windows, and ALTRAview LITE is available for both Windows and MacOS.  Learn more about ALTRAview HERE.

The ALTRA PathoPix 4K comes with a 5G WiFi adapter that lets you view live images from the camera and perform basic imaging operations right from your mobile device.  Capture and share directly from your device.

Download the AccuView mobile app (Android or iOS) to get started.  Only a few steps are required the first time you connect:

1. Insert the WiFi adapter into the USB 3.0 port on the camera.
2. Power up the camera.
3. Connect to the camera’s WiFi network.
4. Launch the AccuView mobile app.

For more detailed instructions, refer to the quick start guide in the Resources tab.
